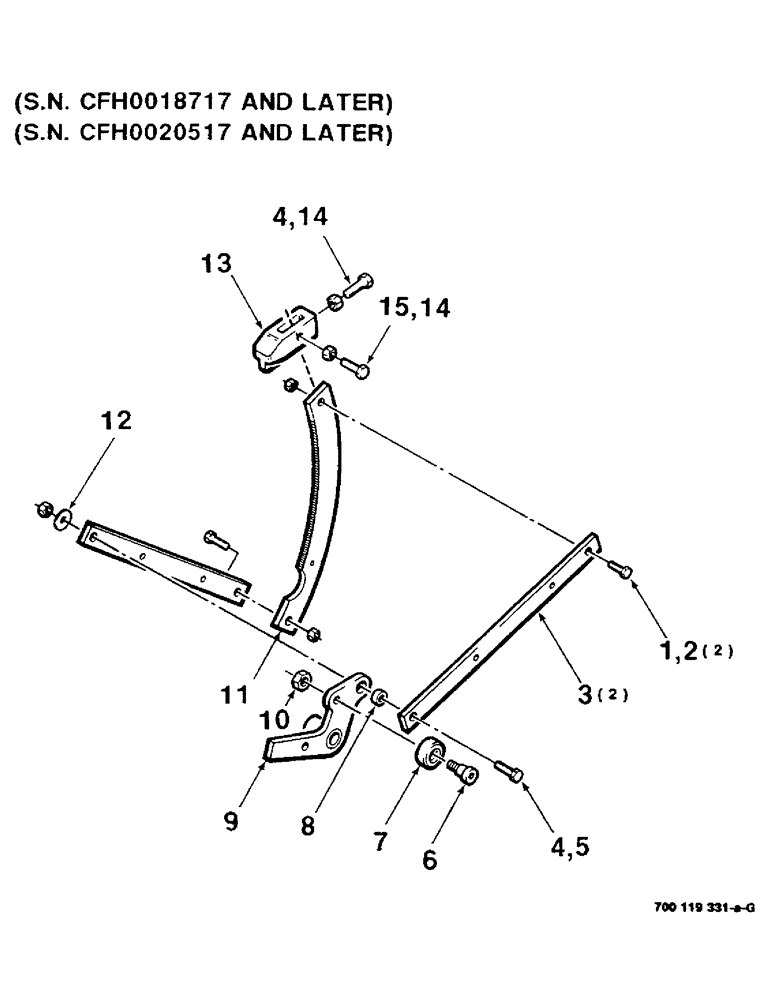

Запчасти Case IH 8530 (6-08) - SPACER CAM ASSEMBLY, (S.N. CFH0018717 AND LATER), (S.N. CFH0020517 AND LATER) (14) - BALE CHAMBER

1

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

2шт.

2

704619

SUPPORT

5/16-18 HCLN

2шт.

3

700121071

STRAP

- trip

2шт.

4

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

2шт.

5

704635

NUT

3/8-16 HCLN

1шт.

6

121-126

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

3/8 X 3/8 X 5/16-18 HSHSS

1шт.

7

700119470

ROLLER

- cam

1шт.

8

6524938

SPACER

1шт.

6823769

SPACER

1шт.

9

700119468

ARM

WA - clutch

1шт.

10

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 HJN

1шт.

11

700108473

CAM

1шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

1шт.

13

1661234

CLAMP

- stop

1шт.

14

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

15

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.
