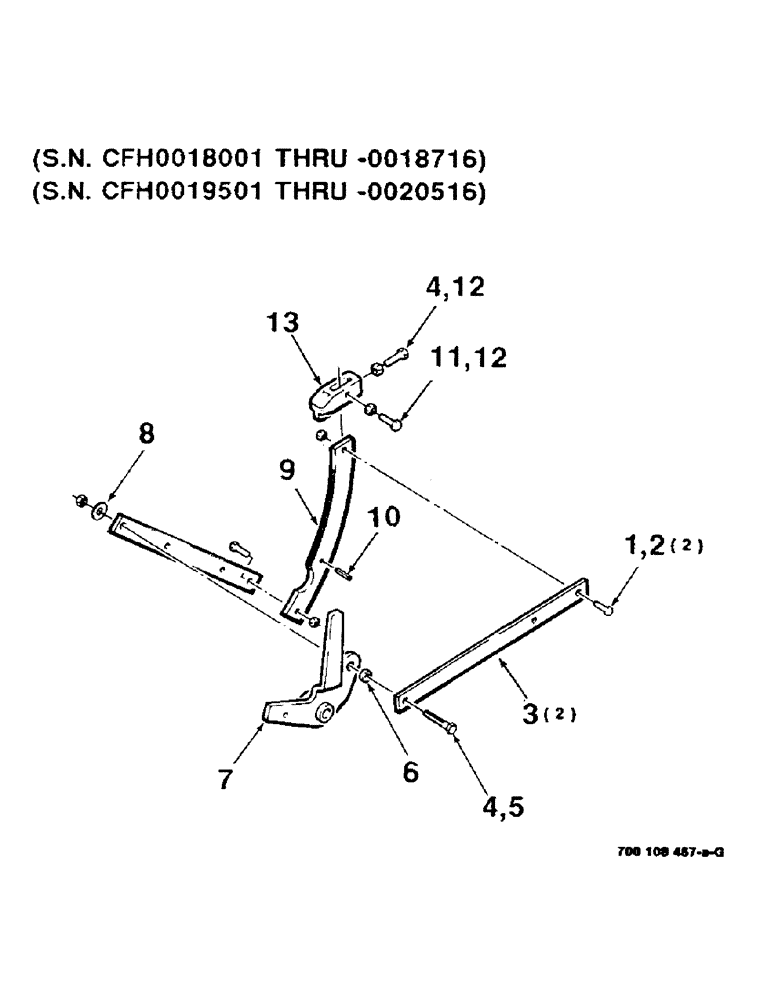

Запчасти Case IH 8530 (6-06) - SPACER CAM ASSEMBLY, (S.N. CFH0018001 THRU CFH0018716), (S.N. CFH00190501 THRU CFH0020516) (14) - BALE CHAMBER

1

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

2шт.

2

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

2шт.

3

700108471

STRAP

- trip

2шт.

4

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

2шт.

5

88902

NUT,3/8"-16

3/8-16 HCLN

1шт.

6

6524938

SPACER

1шт.

6823769

SPACER

1шт.

7

700108468

ARM

- clutch

1шт.

8

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

9

700108473

CAM

1шт.

10

38-11216

LOCK PIN,3/16" x 1", Slotted

SLOTTED SPRING PIN

1шт.

11

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

12

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

13

1661234

CLAMP

- stop

1шт.
