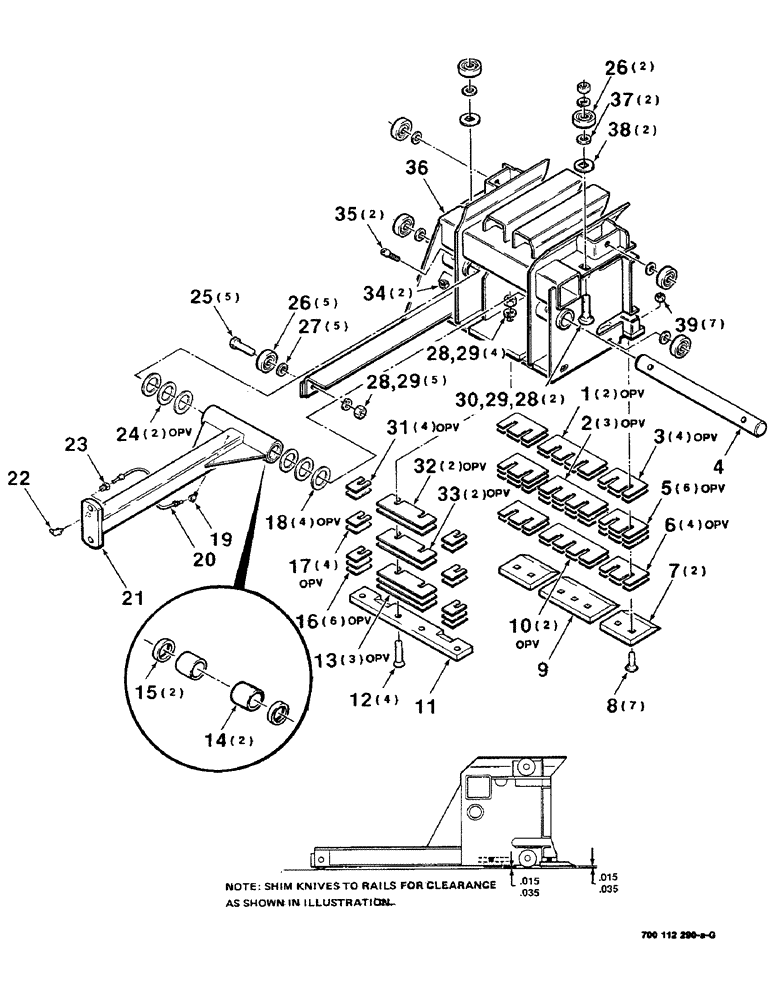

Запчасти Case IH 8530 (5-08) - PLUNGER ASSEMBLY (13) - FEEDER

1

700108260

ADJUSTING PLATE

SHIM

2шт.

2

700108263

ADJUSTING PLATE

SHIM

3шт.

3

700112468

ADJUSTING PLATE

SHIM

4шт.

4

700112320

SHAFT

- plunger

1шт.

5

700112467

SHIM

6шт.

6

700112465

ADJUSTING PLATE

SHIM

4шт.

7

700706004

KNIFE

- outer

2шт.

8

707455

BOLT,#3, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 PB

7шт.

9

700703917

KNIFE

- inner

1шт.

10

700108181

ADJUSTING PLATE

SHIM

2шт.

11

700703916

KNIFE

- plunger

1шт.

12

700702265

HEX SOC SCREW,Flat Hd, 5/8"-11 x 1 3/4"

5/8-11 X 2 HSFCHCS

4шт.

13

700115416

SHIM

3шт.

14

6186506

BUSHING,38.2mm ID x 44.58mm OD x 50.8mm L

- bronze

2шт.

15

700706006

OIL SEAL

- grease

2шт.

16

700115419

SHIM

6шт.

17

700115418

SHIM

4шт.

18

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

4шт.

19

700706324

ELBOW

45 DEGREE ELBOW

1шт.

20

700706326

LINE

- grease

1шт.

21

700112346

PITMAN

ASSEMBLY (Includes items 14 & 15)

1шт.

22

77115

FITTING

1/8-27 X 90 DEGREE ZERK

1шт.

23

700701485

HYD CONNECTOR

FITTING - grease line

1шт.

24

NLS

NO LONGER SERVICED

1-1/2 X 14 GAUGE NRMB

2шт.

25

700706003

SCREW

5/8-11 X 2 HEX BOLT - special

5шт.

26

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

- cylinder

7шт.

27

52233

BUSHING

5/8 X 14 GAUGE NRMB

5шт.

28

704130

NUT,5/8"-11, G5

5/8-11 H

11шт.

29

705061

PLUG

5/8"

11шт.

30

7870165

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

31

700115420

SHIM

4шт.

32

700115417

SHIM

2шт.

33

700115415

SHIM

2шт.

34

7704141

EXTENSION

3/8-16 HTLN GR/B

2шт.

35

702647

HEX SOC SCREW,3/8"-16 x 2"

3/8-16 X 2 HSHCS SPL

2шт.

36

700112291

PLUNGER

WA

1шт.

37

1660993

WASHER

5/8 WASHER - special ht

2шт.

38

6210371

SQ HOLE WASHER

5/8 WASHER - special

2шт.

39

704858

LOCK NUT

1/2-13 HTLN GR/B

7шт.
