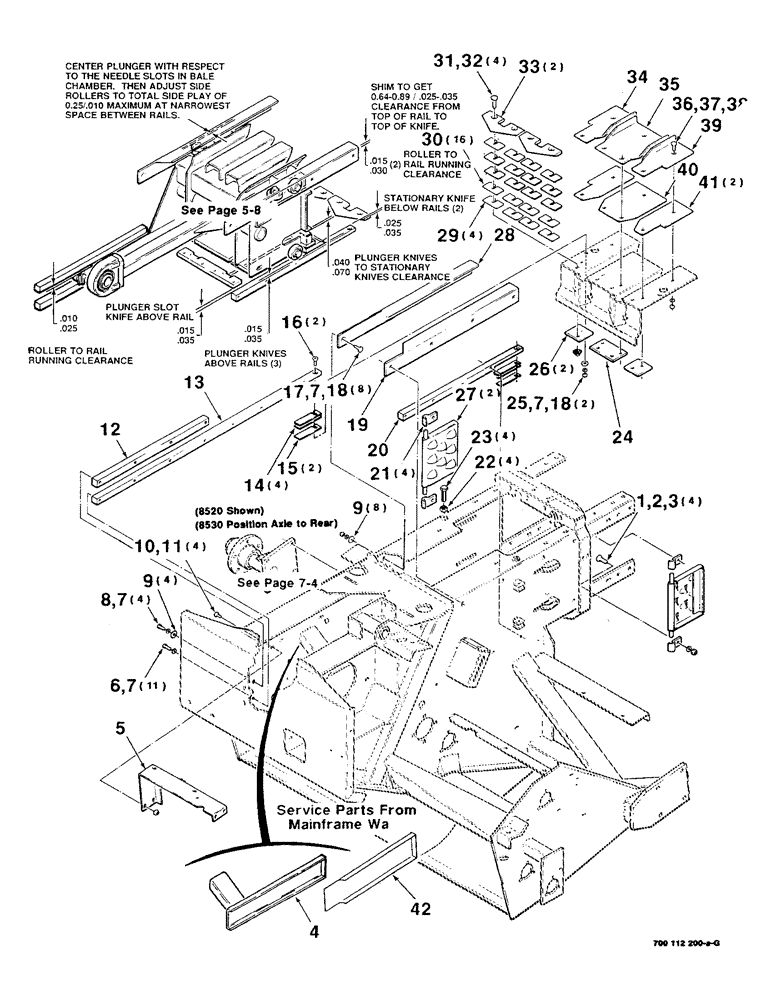

Запчасти Case IH 8530 (5-06) - MAINFRAME & PLUNGER ASSEMBLY (13) - FEEDER

1

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

704031

NUT

1/2-13 H

4шт.

4

700112543

CHANNEL

- right

1шт.

5

700112515

SUPPORT

- right (8520 only)

1шт.

700116617

SUPPORT

- right (8530 only)

1шт.

6

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

11шт.

7

705038

CONTROL VALVE

3/8"

25шт.

8

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

4шт.

9

705533

WASHER

3/8 HARDENED PLAIN WASHER

12шт.

10

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

4шт.

11

704239

FRONT AXLE

5/16-18 HFSLN

4шт.

12

700112521

RAIL

- upper, right front

1шт.

13

700112520

RAIL

- lower, right

1шт.

14

700108719

SHIM

4шт.

15

700108718

SHIM

2шт.

16

771808

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 1/4"

3/8-16 X 1-1/4 HSFCHCS

2шт.

17

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PB

8шт.

18

704023

NUT,3/8"-16, G5

3/8-16 H

10шт.

19

700112361

ANGLE

- left

1шт.

20

700112519

RAIL

- lower, left

1шт.

21

700112507

CLIP

- door

4шт.

22

704064

NUT

3/8-16 HJN

4шт.

23

873083

SCREW

3/8-16 X 1-1/2 FTC

4шт.

24

700112514

REINFORCEMENT

- knife, center

1шт.

25

705657

WASHER

3/8 NARROW PLAIN WASHER

2шт.

26

700112513

REINFORCEMENT

- knife, side

2шт.

27

700112529

DOOR

WA - tension

2шт.

28

700112362

ANGLE

- right

1шт.

29

700112533

ADJUSTING PLATE

SHIM - .010

4шт.

30

700108406

ADJUSTING PLATE

SHIM - .018

16шт.

31

707448

BOLT

1/2-13 X 1-1/2 PB

4шт.

32

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

33

700706213

KNIFE

- stationary

2шт.

34

700112517

PLATE

- right

1шт.

35

700112469

PLATE

- center

1шт.

36

19-520

CARRIAGE BOLT,#3, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 PB

7шт.

37

705020

LOCK WASHER

5/16"

7шт.

38

704015

NUT,5/16"-18, G5

5/16-18 H

7шт.

39

700112518

PLATE

- left

1шт.

40

700115442

PLATE

- center, left

1шт.

41

700115443

LARGE PLATE

PLATE - side, lower

2шт.

42

700112542

CHANNEL

WA - left

1шт.
