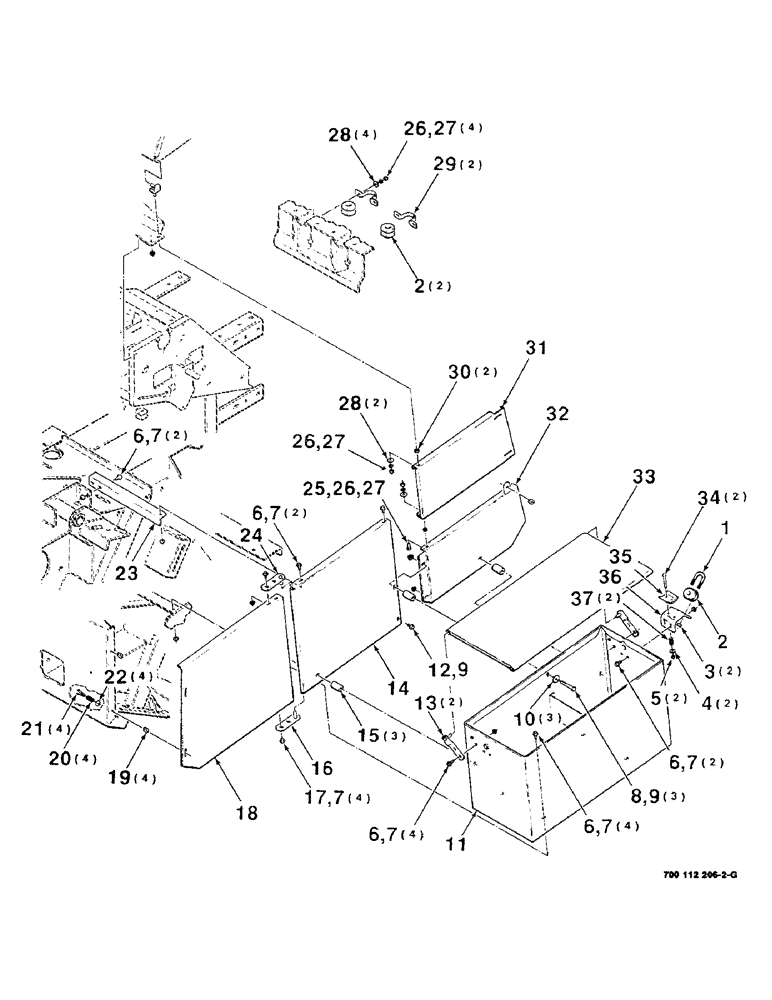

Запчасти Case IH 8530 (7-08) - SHIELDS AND TWINE BOX ASSEMBLY - LEFT (12) - MAIN FRAME

1

51200861

U-BOLT

1шт.

2

700711131

GUIDE

- twine

3шт.

3

704619

SUPPORT

5/16-18 HCLN

2шт.

4

705707

WASHER,1/4", SAE

1/4 NARROW PLAIN WASHER

2шт.

5

704395

NUT

1/4-20 LHSN

2шт.

6

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

14шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

18шт.

8

701888

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8-16 X 2-1/4 C

3шт.

9

704247

NUT

3/8-16 HFSLN

4шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

3шт.

11

700112505

BOX

- twine, left

1шт.

12

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

1шт.

13

700108543

SUPPORT

WA

2шт.

14

700112265

PANEL

- center, left

1шт.

15

6605315

HUB

SPACER

3шт.

16

700112262

SUPPORT

WA - lower

1шт.

17

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS

4шт.

18

700112254

DOOR

- front, left

1шт.

19

7894967

HANDLE

- latch

4шт.

20

7758212

SPRING

- compression

4шт.

21

7894975

CLIP

- fastener

4шт.

22

705608

WASHER,5/16", SAE

5/16 NARROW PLAIN WASHER

4шт.

23

700112272

ANGLE

- mounting, panel

1шт.

24

700112264

SUPPORT

WA - upper

1шт.

25

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

1шт.

26

705020

LOCK WASHER

5/16"

6шт.

27

704015

NUT,5/16"-18, G5

5/16-18 H

6шт.

28

705525

WASHER

5/16 HARDENED PLAIN WASHER

6шт.

29

700108485

SUPPORT

- guide

2шт.

700122493

SUPPORT

- guide

2шт.

30

700112261

BUSHING

2шт.

31

700112255

DOOR

- rear, left

1шт.

32

700112266

PANEL

WA - rear, lower

1шт.

33

700112241

LID

- box, twine

1шт.

34

7701964

SCREW,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

35

6549869

SUPPORT

BRACKET - tension

1шт.

36

700112260

SUPPORT

- tension

1шт.

37

58925

SPRING

- tension

2шт.
