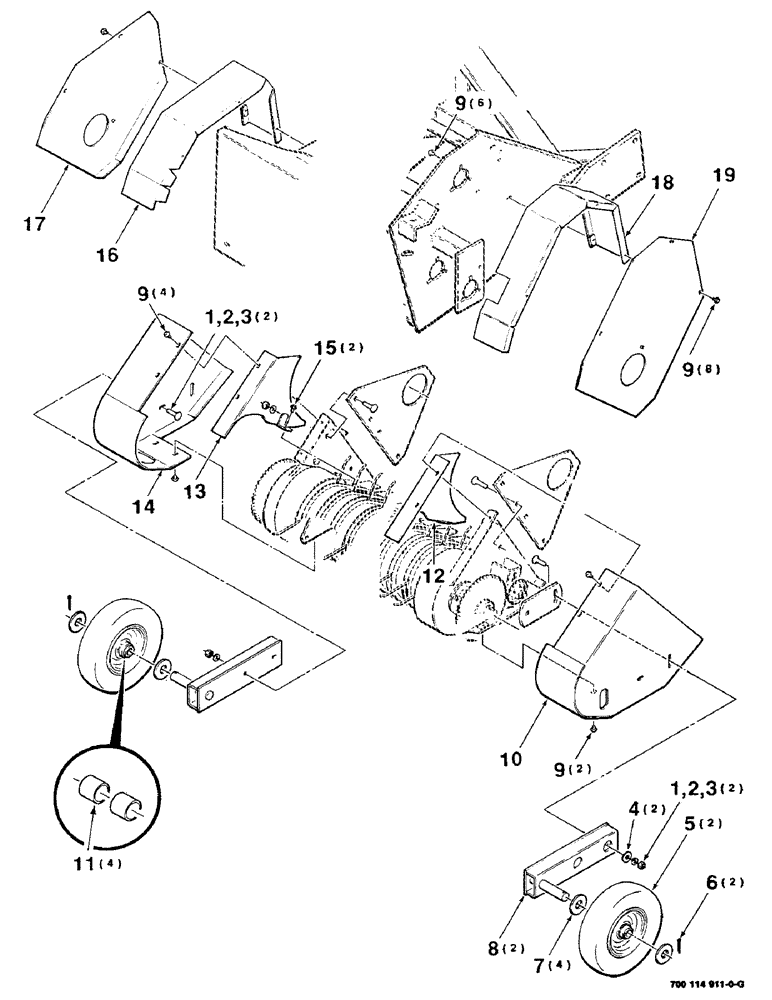

Запчасти Case IH 8530 (3-12) - PICKUP GAUGE WHEELS AND SHIELDS ASSEMBLY Pickup

1

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

704031

NUT

1/2-13 H

4шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

5

700707953

RIM

WHEEL - gauge (Includes item 11)

2шт.

6

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16 X 1-1/2 COTTER PIN

2шт.

7

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.

8

700112269

STRUT

WA - gauge wheel

2шт.

9

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS

20шт.

10

700112285

SHIELD

WA - end, left

1шт.

11

700712011

BUSHING

4шт.

12

700111510

SHIELD

WA - auger, left

1шт.

13

700111511

SHIELD

WA - auger, right

1шт.

14

700112288

SHIELD

SHEILD WA - right

1шт.

15

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

2шт.

16

700112280

SHIELD

WA - right

1шт.

17

700112274

SHIELD

- side, right

1шт.

18

700112278

SHIELD

WA - left

1шт.

19

700112273

SHIELD

- side, left

1шт.
