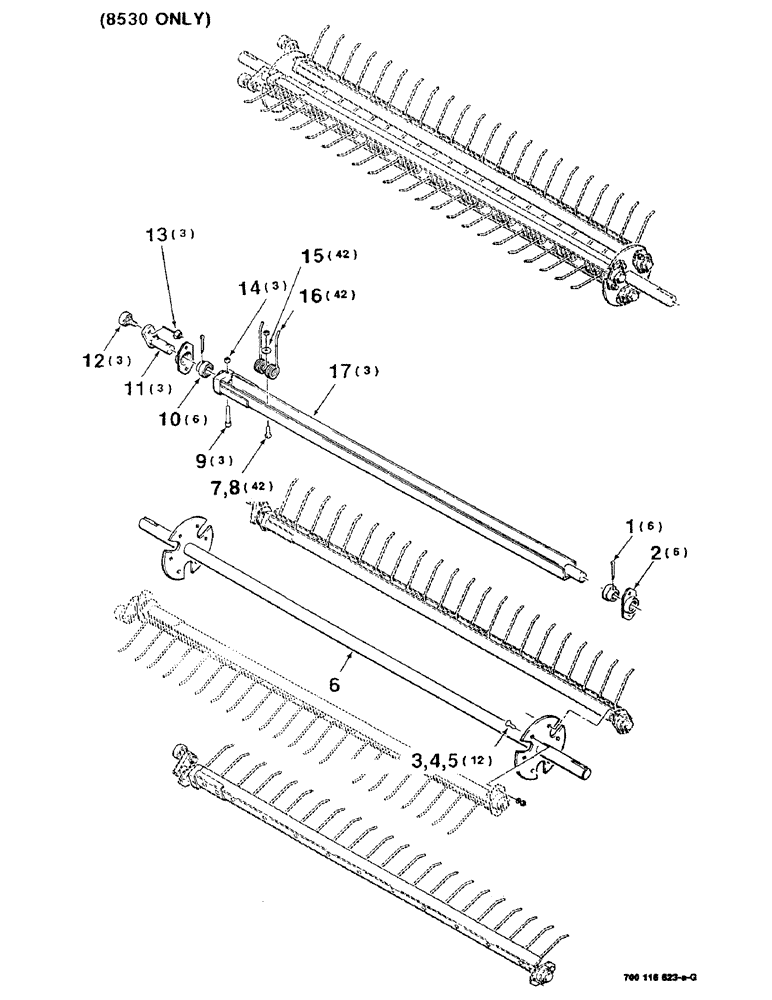

Запчасти Case IH 8530 (3-10) - PICKUP TINE ASSEMBLY, (8530 ONLY) Pickup

1

062307

1/4 X 2 COTTER PIN

6шт.

2

700108622

FLANGED BEARING

FLANGE - bearing

6шт.

3

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

12шт.

4

705038

CONTROL VALVE

3/8"

12шт.

5

704023

NUT,3/8"-16, G5

3/8-16 H

12шт.

6

700116625

ROTOR

SHAFT - pickup

1шт.

7

700047

BOLT

3/8-16 X 1 RHSNB

42шт.

8

704247

NUT

3/8-16 HFSLN

42шт.

9

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS SPL

3шт.

10

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

6шт.

11

700108618

ARM

CRANK WA - tine bar

3шт.

12

700705612

CAM FOLLOWER

BEARING - cam, follower

3шт.

13

700707867

NUT

1/2-20 HFTLN GR/G

3шт.

14

88902

NUT,3/8"-16

3/8-16 HCLN GR/B

3шт.

15

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

42шт.

16

700703860

REEL TINE,Coiled, 2 Prongs, 164mm L

TINE - double

42шт.

17

700108614

CHANNEL

WA - tine

3шт.
