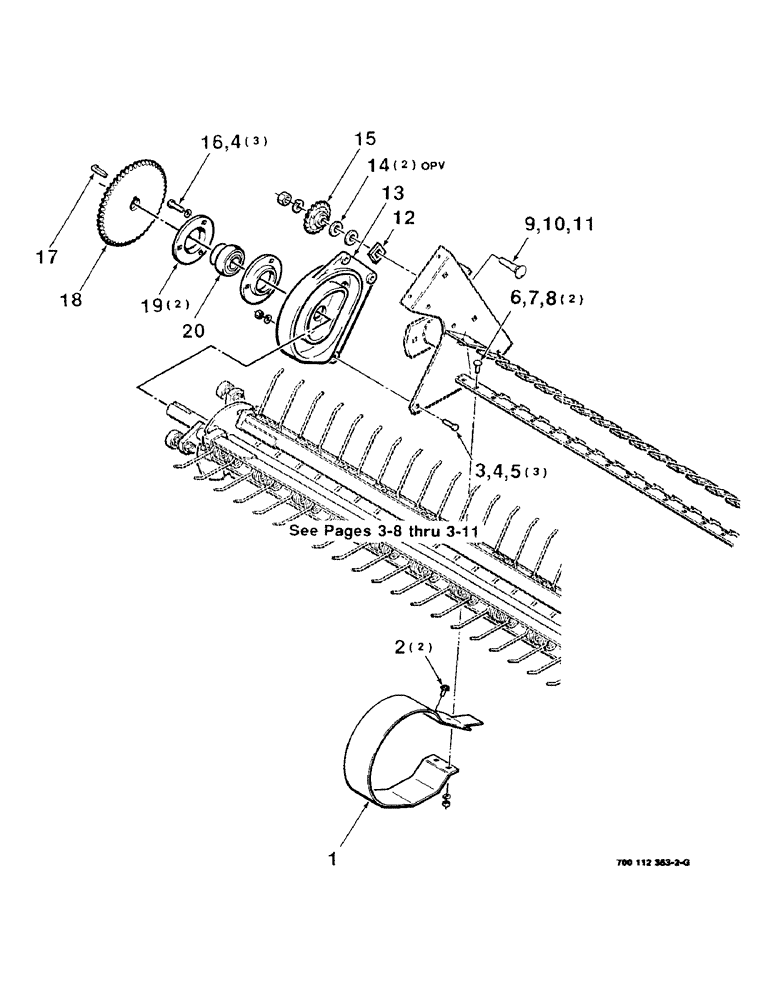

Запчасти Case IH 8530 (3-06) - PICKUP AND CAM ASSEMBLY - RIGHT Pickup

1

700112389

SHIELD

WRAPPER - end

1шт.

2

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

2шт.

3

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

3шт.

4

705038

CONTROL VALVE

3/8"

6шт.

5

704023

NUT,3/8"-16, G5

3/8-16 H

3шт.

6

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

2шт.

7

705020

LOCK WASHER

5/16"

2шт.

8

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

9

7870165

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

1шт.

10

705061

PLUG

5/8"

1шт.

11

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

12

700115572

SQ HOLE WASHER

- special

1шт.

13

700108672

CAM

TRACK - cam

1шт.

700116125

HOUSING

TRACK - cam

1шт.

14

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

15

47977

SPROCKET ASSY.

SPROCKET - idler

1шт.

16

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

3шт.

17

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

18

700112388

SPROCKET ASSY.

SPROCKET - 40B50

1шт.

19

617863R1

FLANGED BEARING

- bearing

2шт.

20

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

1шт.
