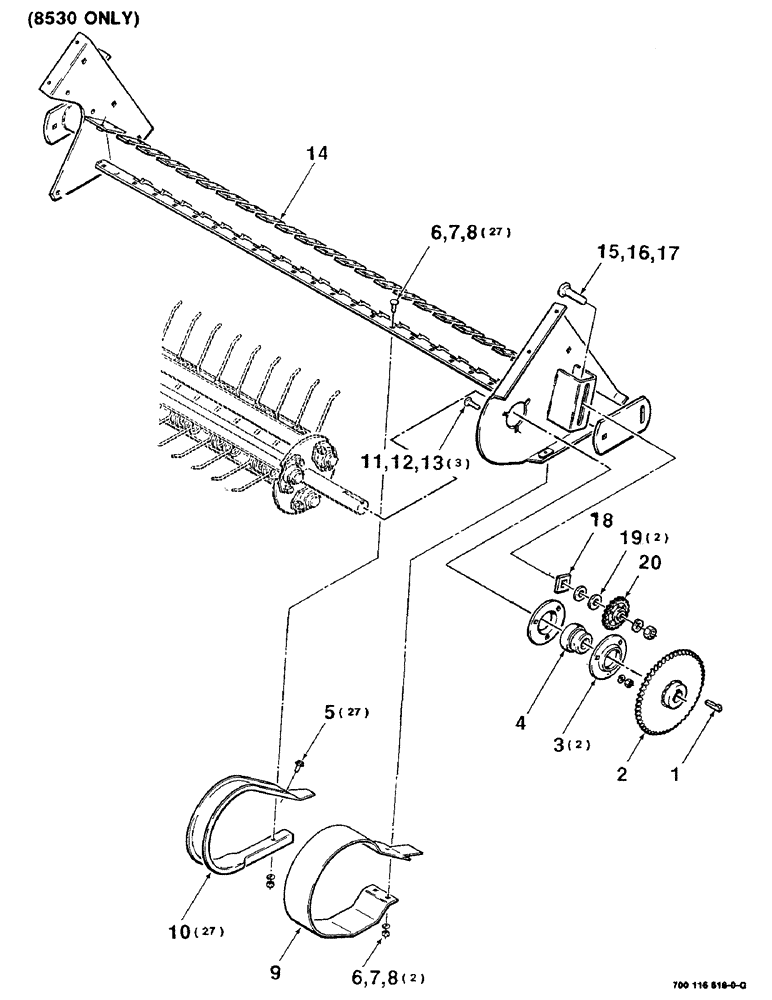

Запчасти Case IH 8530 (3-04) - PICKUP FRAME AND WRAPPER ASSEMBLY - LEFT, (8530 ONLY) Pickup

1

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

2

700112388

SPROCKET ASSY.

SPROCKET 40B50

1шт.

3

50534

FLANGED BEARING

- bearing

2шт.

4

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

5

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

27шт.

6

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

29шт.

7

705020

LOCK WASHER

5/16"

29шт.

8

704015

NUT,5/16"-18, G5

5/16-18 H

29шт.

9

700112389

SHIELD

WRAPPER - end

1шт.

10

700112379

GUARD

WRAPPER

27шт.

11

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

3шт.

12

705038

CONTROL VALVE

3/8"

3шт.

13

704023

NUT,3/8"-16, G5

3/8-16 H

3шт.

14

700116619

FRAME

WA - pickup

1шт.

15

7870165

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

1шт.

16

705061

PLUG

5/8"

1шт.

17

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

18

700115572

SQ HOLE WASHER

- spherical

1шт.

19

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

20

47977

SPROCKET ASSY.

SPROCKET - idler

1шт.
