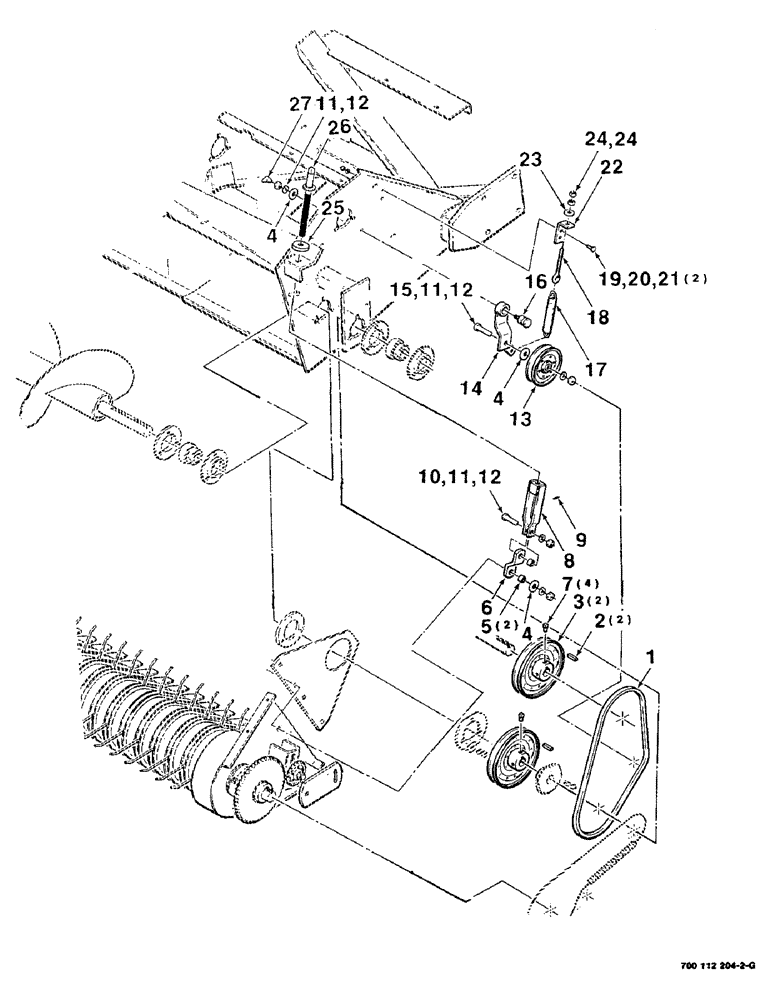

Запчасти Case IH 8530 (2-28) - PICKUP DRIVE & SUSPENSION ASSEMBLY (CONTINUED) Driveline

1

57604

V-BELT

1шт.

2

61077

KEY

1/4 X 1-1/4 KEY

2шт.

3

854463

PULLEY

SHEAVE

2шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

3шт.

5

6825293

SPACER

2шт.

6

700112413

SUPPORT

LINK - support

1шт.

7

708222

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

3/8-16 X 5/8 CPSQHSS

4шт.

8

700112410

STRAP

WA

1шт.

9

438-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

10

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 C

1шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

12

86516876

COVER

1/2-13 H

3шт.

13

53553

SHAFT

V-IDLER

1шт.

14

700112402

ARM ASSY.

ARM WA - idler

1шт.

15

70924864

SCREW

1/2-13 X 2-1/4 C

1шт.

16

700112405

SCREW

1/2-13 SHOULDER SCREW

1шт.

17

R31412

SPRING

- extension

1шт.

18

114140

BOLT

3/8-16 EYE BOLT

1шт.

19

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

2шт.

20

705020

LOCK WASHER

5/16"

2шт.

21

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

22

700112406

SUPPORT

- spring

1шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

1шт.

24

704023

NUT,3/8"-16, G5

3/8-16 H

2шт.

25

700706024

WASHER

SPACE

1шт.

26

700112407

SCREW

WA

1шт.

27

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 X 90 DEGREE ZERK

1шт.
