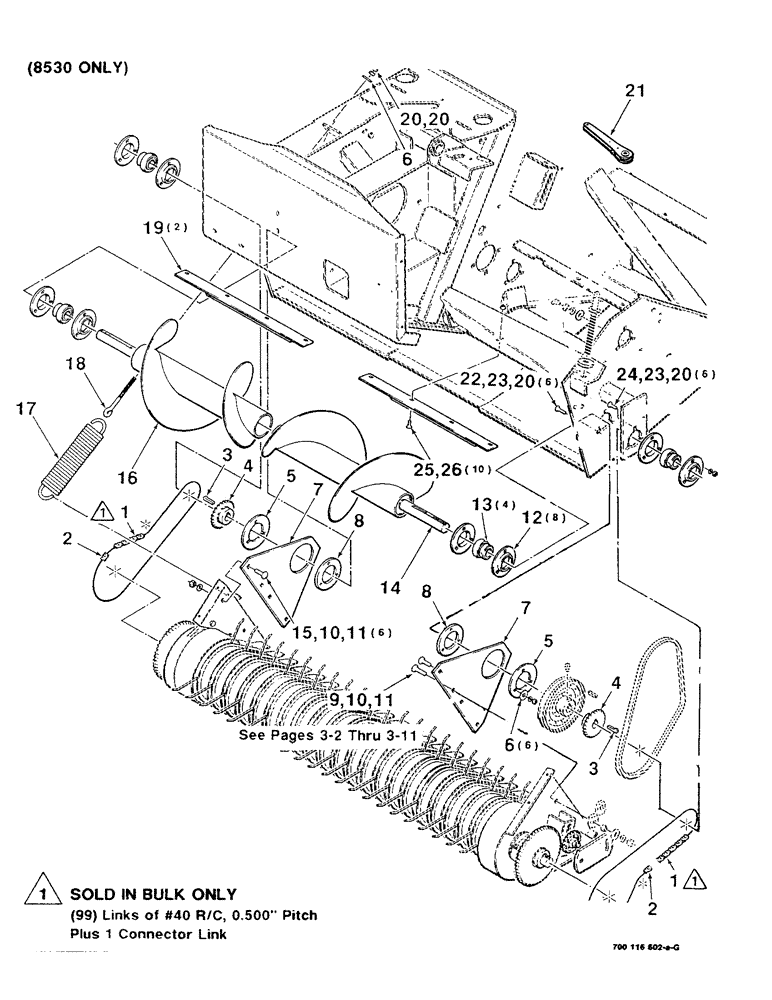

Запчасти Case IH 8530 (2-26) - PICKUP DRIVE & SUSPENSION ASSEMBLY, (8530 ONLY) Driveline

1

1790D

CHAIN (AG)

CHAIN - roller, #40 (10 foot bulk)

2шт.

2

241-1314

CHAIN LINK

LINK - connector, R/C #40

2шт.

3

61424

KEY

1/4 X 1-1/4 KEY - gib

2шт.

4

700707426

SPROCKET ASSY.

SPROCKET WA 40B24

2шт.

5

700112401

FLANGE

- outer

2шт.

6

705533

WASHER

3/8 HARDENED PLAIN WASHER

7шт.

7

700112399

PLATE

- pivot, pickup

2шт.

8

700112400

SPACER

- pivot

2шт.

9

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

11

704031

NUT

1/2-13 H

7шт.

12

50534

FLANGED BEARING

- bearing

8шт.

13

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

4шт.

14

700116627

AUGER

WA - left

1шт.

15

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

6шт.

16

700116628

AUGER

WA - right

1шт.

17

700706020

SPRING

- extension

1шт.

18

766394

CONSOLE

3/8-16 X 7 EYE BOLT

1шт.

19

700116643

STRIPPER

2шт.

20

704023

NUT,3/8"-16, G5

3/8-16 H

14шт.

21

700706021

RATCHET

ARM

1шт.

22

768036

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 RHSNB

6шт.

23

705038

CONTROL VALVE

3/8"

12шт.

24

700047

BOLT

3/8-16 X 1 RHSNB

6шт.

25

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

10шт.

26

704239

FRONT AXLE

5/16-18 HFSLN

10шт.
