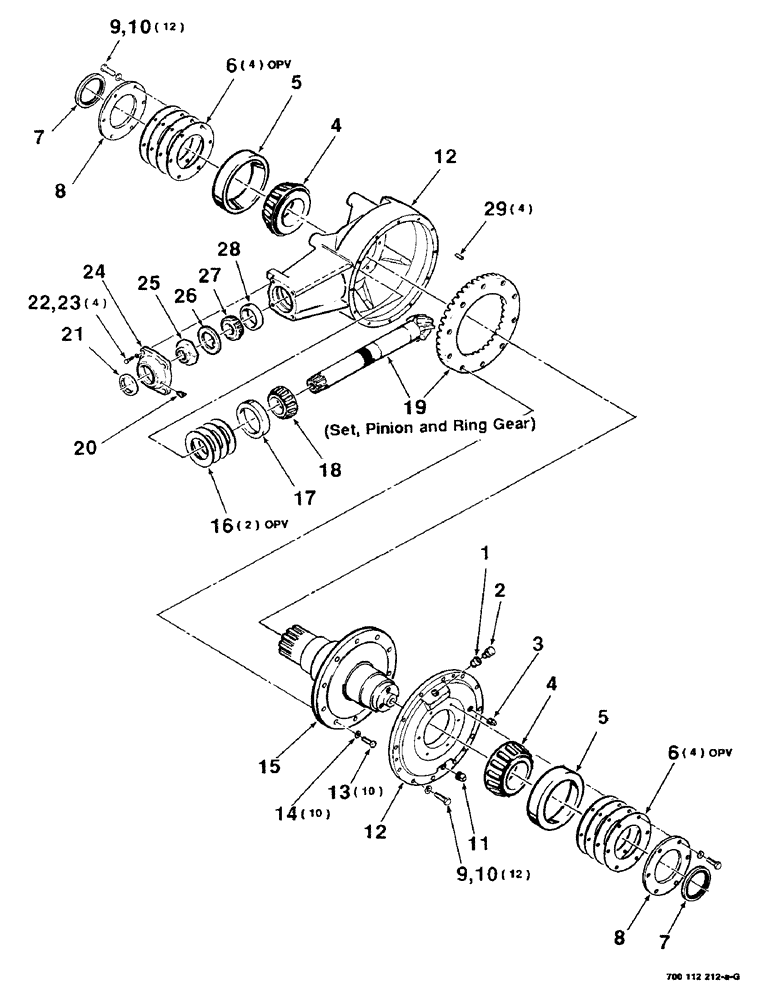

Запчасти Case IH 8530 (2-20) - GEARBOX Driveline

1

803783

REDUCER

BUSHING - reducer

1шт.

2

7751605

BREATHER

PLUG - vent

1шт.

3

746305

PLUG

1/2 PLUG - sq head

1шт.

4

700704966

ROLLER BEARING,85.275 mm ID x 29.769 mm

BEARING - cone

2шт.

5

7714371

BEARING CUP

- cup

2шт.

6

8801953

SHIM

- .010

8шт.

8801961

SHIM

- .012

8шт.

8801979

SHIM

- .015

8шт.

7

7807332

OIL SEAL,85.65mm ID x 111.19mm OD x 9.93mm Thk

- oil

2шт.

8

700112215

RETAINER

- bearing

2шт.

9

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

24шт.

10

705038

CONTROL VALVE

3/8"

24шт.

11

8746638

PLUG

- drain, magnet

1шт.

12

700112213

DRIVE

HOUSING & COVER

1шт.

13

8701708

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

1/2-13 X 1-1/4 C GR8 NP

10шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

15

700112216

HUB

- crank

1шт.

16

700704962

SHIM

- .010

2шт.

700704963

SHIM

- .012

2шт.

700704964

SHIM

- .015

2шт.

17

1968297C1

BEARING CUP,47.62 mm ID x 111.15 mm OD x 30.36 mm

BEARING, CUP

1шт.

18

8050676

ROLLER BEARING

CUP

1шт.

19

8802019

GEAR-SET

GEAR SET - HYPOID (Pinion & ring gear - 8520)

1шт.

700707408

GEAR SET

- HYPOID (Pinion & ring gear - 8530)

1шт.

20

77040

FITTING

1/4-28 X 45 DEGREE ZERK

1шт.

21

8044778

SEAL

- grease

1шт.

22

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

4шт.

23

705020

LOCK WASHER

5/16"

4шт.

24

6855613

CAP

- end

1шт.

25

700703426

NUT

- stake

1шт.

26

876359

WASHER

- keyed

1шт.

27

8050668

ROLLER BEARING

- cone

1шт.

28

712182

BEARING CUP,3.265" OD

BEARING - cup

1шт.

29

763417

PIN

3/8 X 1-1/4 DOWEL PIN

4шт.
