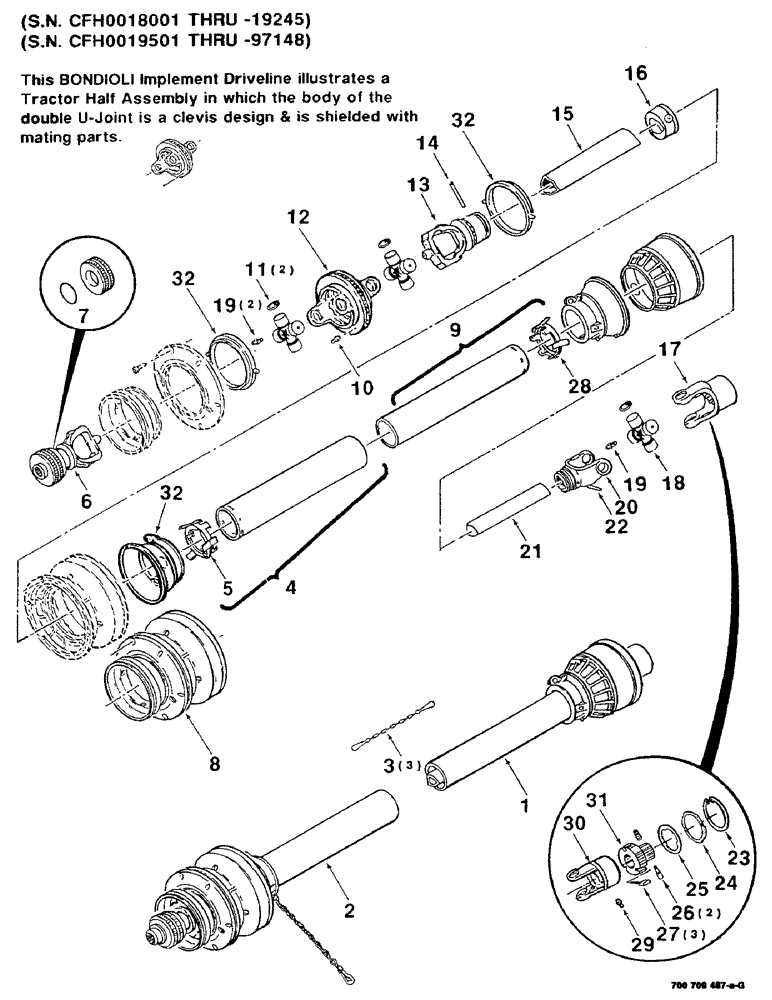

Запчасти Case IH 8530 (2-06) - IMPLEMENT DRIVELINE (BONDIOLI), (S.N. CFH0018001 THRU -19245 Driveline

1

700708767

SHAFT

U-JOINT ASSEMBLY - implement half

1шт.

2

700709481

JOINT

U-JOINT ASSEMBLY - tractor half

1шт.

3

700707183

CHAIN (AG)

CHAIN - safety

3шт.

4

700709484

SHIELD

ASSEMBLY (Includes item 5)

1шт.

5

700708773

BEARING COVER

BEARING - shield, outer

1шт.

6

700709482

YOKE

ASSEMBLY - tractor

1шт.

Ref 6: CATALOG IS IN ERROR ON THIS PART. THE 700709482 YOKE IS 6 SPLINE TO FIT 540 RPM PTO. THE 700709483 YOKE IS TRIANGLE SHAPED TO FIT THE PTO TUBE.

1шт.

7

700707181

COLLAR

1шт.

8

700709480

SHIELD

- CV (Includes item 32)

1шт.

9

700708770

SHIELD

ASSEMBLY - implement end (Includes item 28)

1шт.

10

700707187

NIPPLE, LUBE

ZERK

1шт.

11

700709478

KIT

JOURNAL REPAIR KIT (Includes item 19)

2шт.

REF#11 P/N 700709478 JOURNAL REPAIR KIT; THE CENTER CROSS DIAMETER IS 23.83 MM AND THE LENGTH OF THE CROSS W/CAPS IS 86 MM.

1шт.

12

700709476

BODY

- CV

1шт.

13

700709483

YOKE

1шт.

14

CAS763896

SPLIT PIN/SAFETY PIN

PIN

1шт.

15

700708786

TUBE

- drive, outer

1шт.

16

700708785

COLLAR

- grease

1шт.

17

700708780

CLUTCH

ASSEMBLY - ratchet

1шт.

18

700708781

BEARING ASSY

JOURNAL REPAIR KIT (Includes item 19)

1шт.

19

700707193

NIPPLE, LUBE

ZERK

3шт.

20

700708782

YOKE

- tube, inner

1шт.

21

700708783

TUBE

- drive, inner

1шт.

22

763888

SPLIT PIN/SAFETY PIN

ROLL PIN

1шт.

23

700708775

SNAP RING

1шт.

24

700708777

WASHER

RING - seal

1шт.

25

700708778

RING

- screening

1шт.

26

700708790

KIT

PIN - push

2шт.

27

700708779

RATCHET

- clutch

3шт.

28

700708772

BEARING COVER

BEARING - shield, inner

1шт.

29

700708915

NIPPLE, LUBE

ZERK

1шт.

30

700709052

FORK

YOKE - clutch

1шт.

31

700709490

HUB

- clutch

1шт.

32

700709479

OIL SEAL

RING - bearing (Set of two)

1шт.
