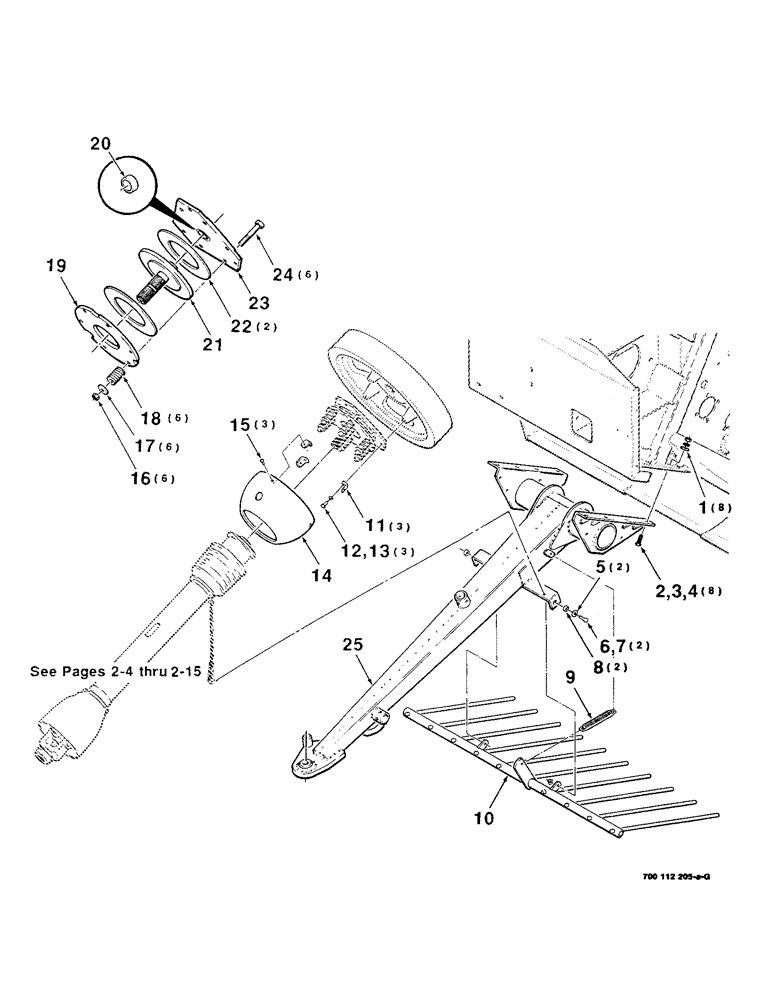

Запчасти Case IH 8530 (2-02) - TONGUE AND PRIMARY DRIVE ASSEMBLY Driveline

1

705582

WASHER

5/8 HARDENED PLAIN WASHER

8шт.

2

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 C

8шт.

3

705061

PLUG

5/8"

8шт.

4

704130

NUT,5/8"-11, G5

5/8-11 H

8шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

6

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

2шт.

7

704742

ROD

1/2-13 HFTLN GR/G

2шт.

8

6355697

LINK

BUSHING

2шт.

9

758441

SPRING

- tension

1шт.

10

700112487

GUARD

WINDGUARD (8520)

1шт.

700116634

GUARD

WINDGUARD (8530)

1шт.

11

700112492

SUPPORT

- clip

3шт.

12

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

3шт.

13

705038

CONTROL VALVE

3/8"

3шт.

14

700112491

SHIELD

- PTO

1шт.

15

70417

BOLT

1/4-20 X 1/2 CRTHMS

3шт.

16

74781

NUT

3/8-16 LHSN

6шт.

17

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

6шт.

18

58107

SPRING

- compression

6шт.

19

1662964

LARGE PLATE

PLATE - pressure

1шт.

20

852749

BRONZE BUSHING

BUSHING - bronze

1шт.

21

700112494

DISC

WA - plate

1шт.

22

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - clutch

2шт.

23

700112497

PLATE

PILOT WA - clutch

1шт.

24

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

6шт.

25

700112476

TOW BAR

TONGUE WA

1шт.
