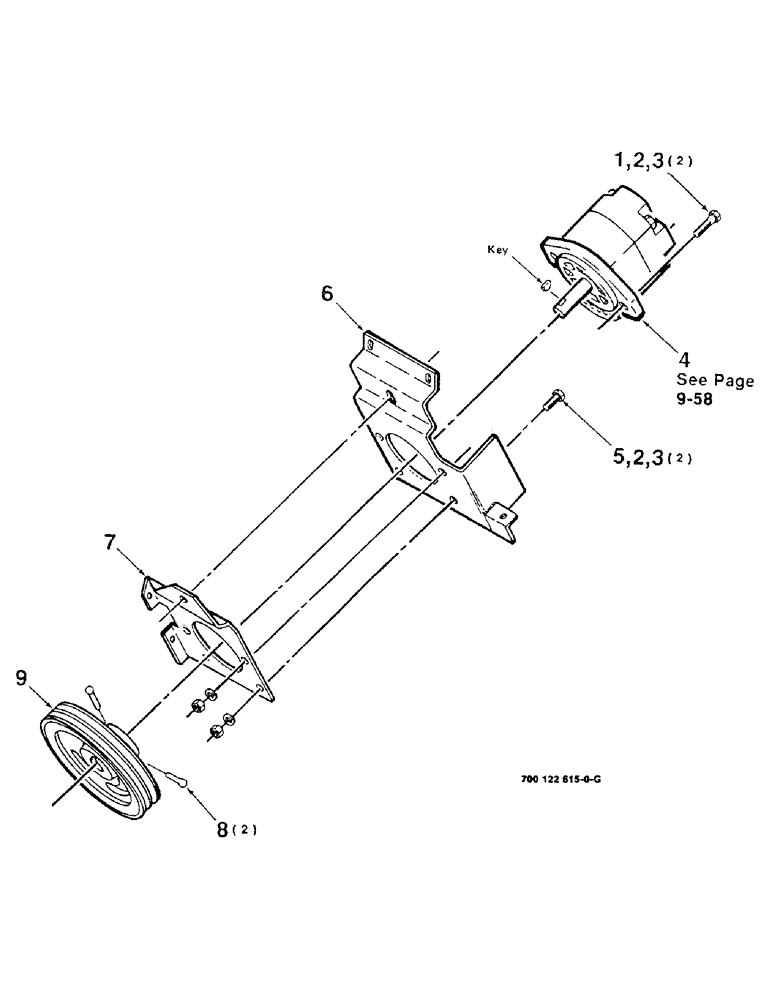

Запчасти Case IH 8530 (9-76) - HYDRAULIC PUMP ASSEMBLY, CONVERSION KIT - CONTINUED Decals & Attachments

1

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-/4 C

2шт.

2

705038

CONTROL VALVE

3/8"

4шт.

3

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

4

7796378

PUMP

- hydraulic (Includes key)

1шт.

5

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

2шт.

6

700121578

LARGE PLATE

PLATE WA - pump, rear

1шт.

7

700121576

LARGE PLATE

PLATE WA - front

1шт.

8

69187

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16-18 X 1 CPHSSS

2шт.

9

1662626

SHEAVE

- drive, pump

1шт.
