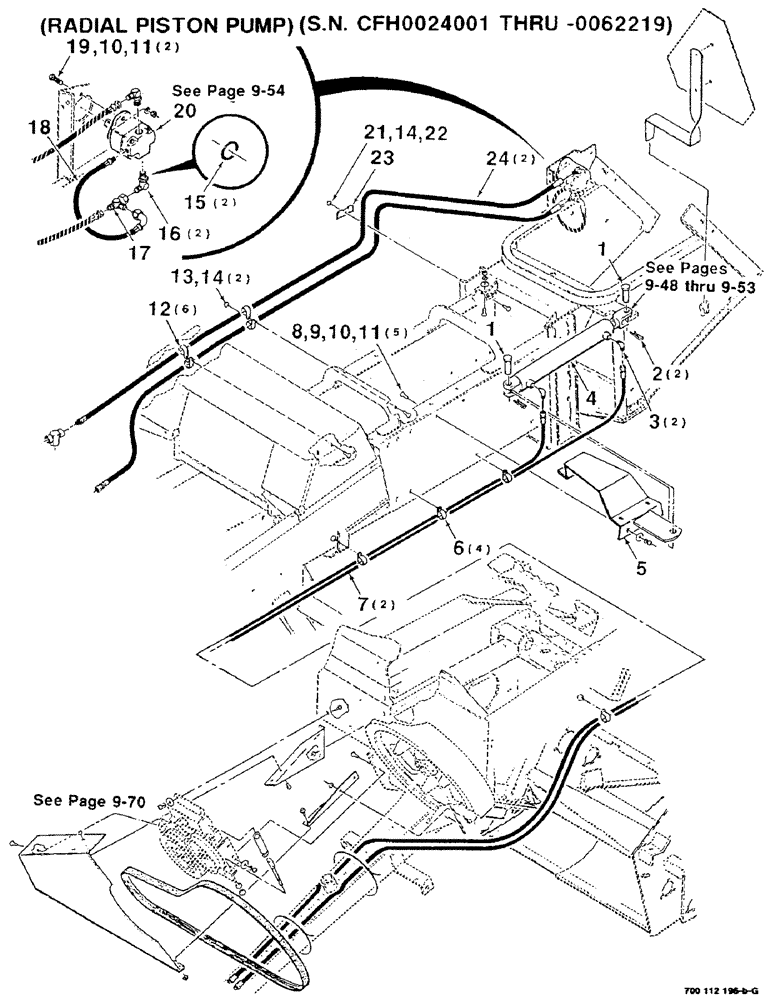

Запчасти Case IH 8530 (9-68) - HYDRAULIC DRIVE AND CONTROL ASSEMBLY - REAR, (RADIAL PISTON PUMP) (S.N. CFH0024001 THRU CFH0062219) Decals & Attachments

1

7037682

PIN

- clevis

2шт.

2

S120261

PIN

.148 X 2-3/4 HAIRPIN COTTER

2шт.

3

7746381

ELBOW

3/8 X 90 DEGREE ELBOW

2шт.

4

796102

CYLINDER

- hydraulic

1шт.

700704934

CYLINDER

- hydraulic

1шт.

700711032

CYLINDER ASSY.

CYLINDER - hydraulic

1шт.

5

700112726

SUPPORT

BRACKET - mounting, cylinder

1шт.

6

7898737

CLAMP

- hose

4шт.

7

700706425

HOSE

- hydraulic

2шт.

8

700047

BOLT

3/8-16 X 1 RHSNB

5шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

5шт.

10

705038

CONTROL VALVE

3/8"

7шт.

11

704023

NUT,3/8"-16, G5

3/8-16 H

7шт.

12

755769

CLAMP

- hose

6шт.

13

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

14

704247

NUT

3/8-16 HFSLN

3шт.

15

738484

O-RING

2шт.

16

7046600

ELBOW

90 DEGREE ELBOW (Includes item 15)

2шт.

17

7846850

TEE

- swivel run

1шт.

18

700706426

HOSE

- hydraulic

1шт.

19

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

2шт.

20

7796386

HYDRAULIC MOTOR

MOTOR - hydraulic

1шт.

21

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

1шт.

22

704635

NUT

3/8-16 HCLN

1шт.

23

451641

CLAMP

- line

1шт.

24

700706361

HOSE

- hydraulic

2шт.
