(9-48) - BALE THROWER HYD CYLINDER ASSY, (S.N. CFH0025001 - CFH0062041) (796102 HYDRAULIC CYLINDER COMPLETE)

Запчасти Case IH 8530 (9-48) - BALE THROWER HYD CYLINDER ASSY, (S.N. CFH0025001 - CFH0062041) (796102 HYDRAULIC CYLINDER COMPLETE) Decals & Attachments

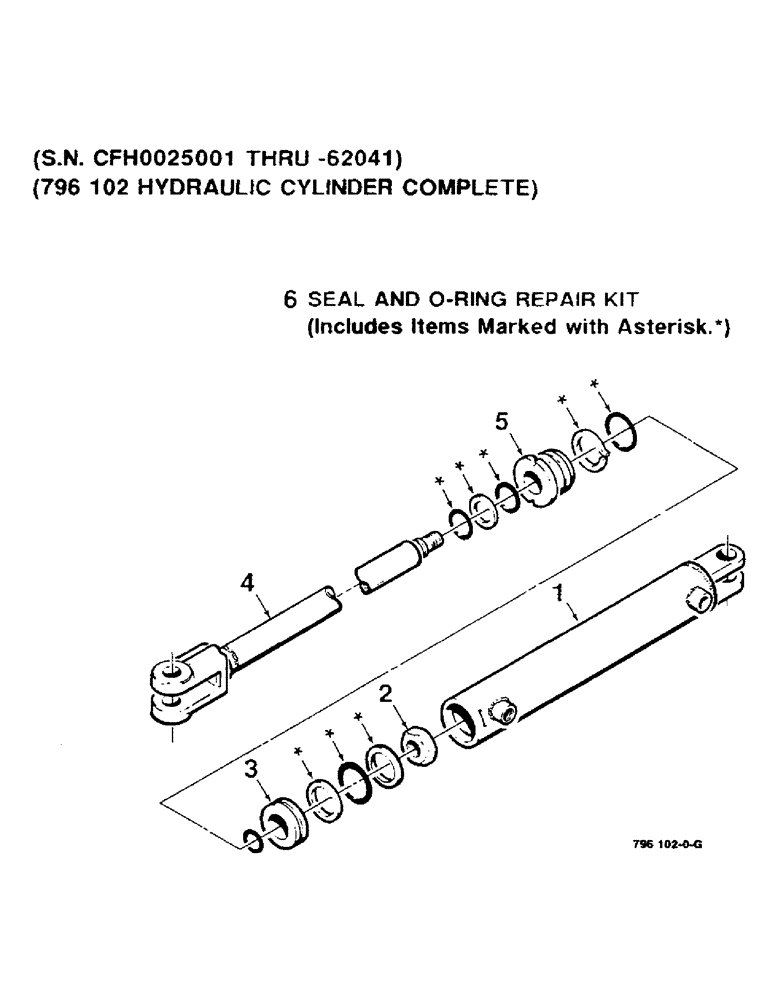

Схема запчастей Case IH 8530 - (9-48) - BALE THROWER HYD CYLINDER ASSY, (S.N. CFH0025001 - CFH0062041) (796102 HYDRAULIC CYLINDER COMPLETE) Decals & Attachments
5
3
1
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

796102

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

7733033

CYLINDER

BARREL

1шт.

2

7733058

LOCK NUT

LOCKNUT

1шт.

3

7032485

PISTON

1шт.

4

7733041

ROD

- piston

1шт.

5

7733025

GLAND

RETAINER (Gland)

1шт.

6

7733066

SEAL KIT

AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
