(9-22) - BALE CHUTE EXTENSION KIT, (HK40417 BALE CHUTE EXTENSION KIT COMPLETE)

Запчасти Case IH 8530 (9-22) - BALE CHUTE EXTENSION KIT, (HK40417 BALE CHUTE EXTENSION KIT COMPLETE) Decals & Attachments

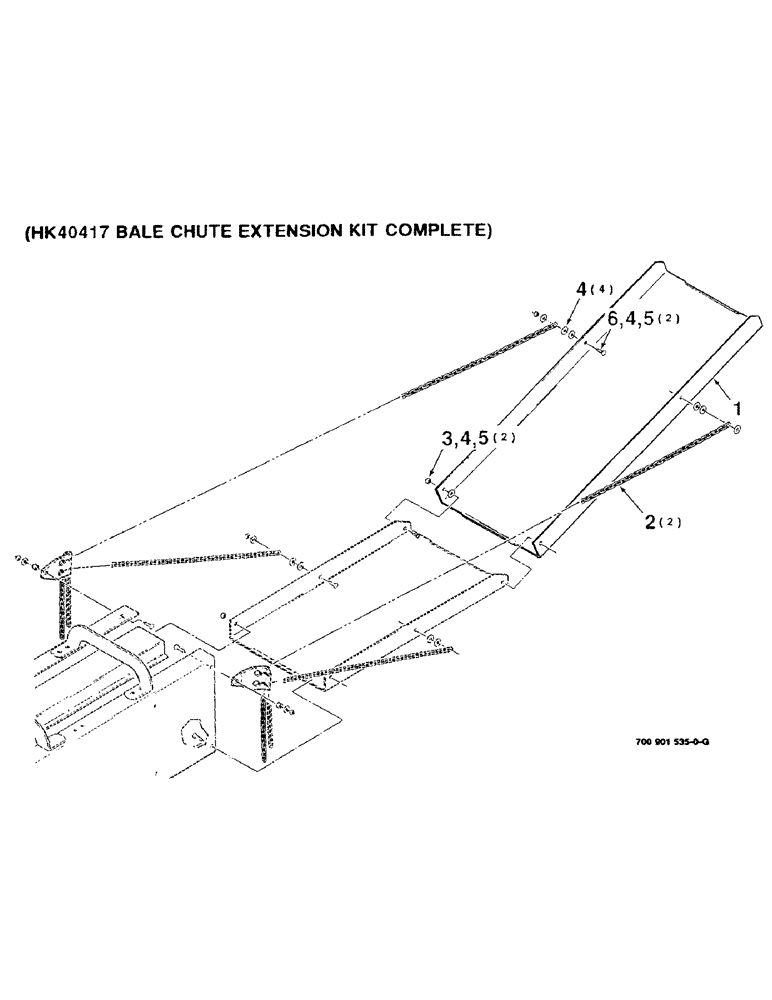

Схема запчастей Case IH 8530 - (9-22) - BALE CHUTE EXTENSION KIT, (HK40417 BALE CHUTE EXTENSION KIT COMPLETE) Decals & Attachments
4
5
4
2
1
5
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK40417

CHUTE (DOWNWARD)

BALE CHUTE EXTENSION KIT COMPLETE

1шт.

1

6559512

CHUTE (DOWNWARD)

CHUTE - loading

1шт.

2

6559504

CHAIN (AG)

CHAIN - chute, rear

2шт.

3

700701905

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CRPHMS

2шт.

4

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

8шт.

5

704635

NUT

3/8-16 HCLN

4шт.

6

700047

BOLT

3/8-16 X 1 RHSNB

2шт.
