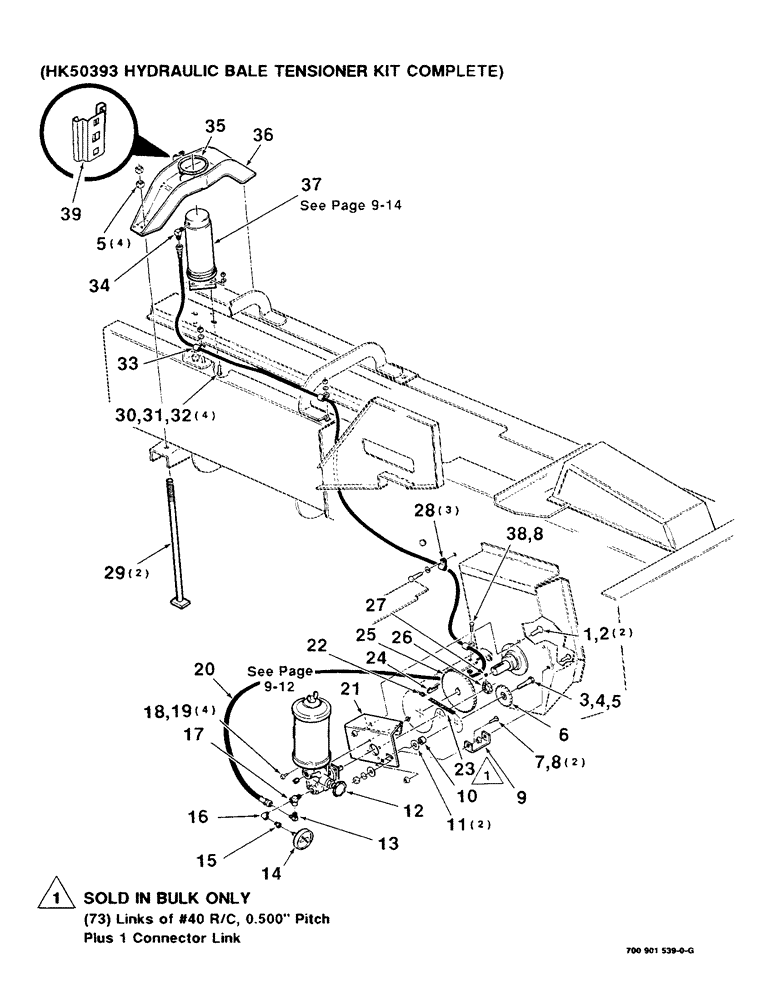

Запчасти Case IH 8530 (9-10) - HYDRAULIC BALE TENSIONER KIT, (HK50393 HYDRAULIC BALE TENSIONER KIT COMPLETE) Decals & Attachments

HK50393

HYDRAULIC BALE TENSIONER KIT COMPLETE

1шт.

1

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

2

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN

2шт.

3

7701659

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 X 2-1/2 C

1шт.

4

705061

PLUG

5/8"

1шт.

5

704130

NUT,5/8"-11, G5

5/8-11 H

5шт.

6

88732

BEARING

SPROCKET - idler 40B18

1шт.

7

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

8

704247

NUT

3/8-16 HFSLN

3шт.

9

700112640

SUPPORT

BRACE - strap

1шт.

10

312801

SPACER

1шт.

11

705582

WASHER

5/8 HARDENED PLAIN WASHER

2шт.

12

7892128

VALVE

PUMP - hydraulic

1шт.

13

7746365

ELBOW

90 DEGREE ELBOW

1шт.

14

700703817

GAUGE

- pressure

1шт.

15

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING - reducer,HOSE

1шт.

16

846394

ELBOW

3/8 STREET ELL

1шт.

17

7046113

TEE

SERVICE TEE

1шт.

18

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 X 1 HWHMS

4шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

4шт.

20

700706300

FLEXIBLE HOSE

HOSE - hydraulic

1шт.

21

700112644

MOUNTING PARTS

MOUNTING - pump

1шт.

22

241-1314

CHAIN LINK

LINK - connector, #40 R/C

1шт.

23

1790D

CHAIN (AG)

CHAIN - roller, #40 (10 foot bulk)

1шт.

24

61424

KEY

1/4 X 1-1/4 KEY - gib

1шт.

25

700112643

SPROCKET ASSY.

SPROCKET - 40B46

1шт.

26

7851082

SPROCKET ASSY.

SPROCKET - 40B10

1шт.

27

69765

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

1/4-20 X 3/8 CPHSSS

1шт.

28

755744

CLAMP

- hose

3шт.

29

700112641

BOX

- tension

2шт.

30

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

4шт.

31

705038

CONTROL VALVE

3/8"

4шт.

32

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

33

700703825

CLAMP

- hose

1шт.

34

846170

ELBOW

90 DEGREE ELBOW

1шт.

35

7852148

RING, SNAP

RING - retainer

1шт.

36

700108433

SUPPORT

TRUSS (Includes item 39)

1шт.

37

700703899

CYLINDER

- hydraulic, tensioner

1шт.

38

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

1шт.

39

A59457

BRACKET

1шт.

Hk50393 Hydraulic Bale Tensioner kit complete.

1шт.

Machinery ITEM. JDS CAM 4/1/98

1шт.
