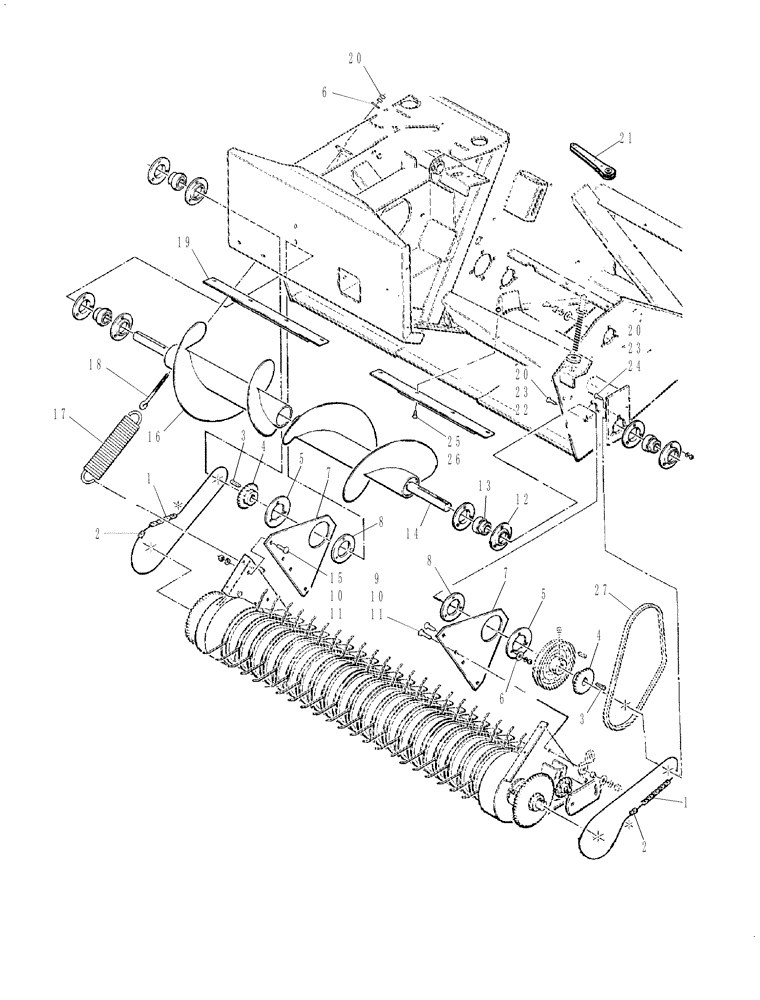

Запчасти Case IH 8520 (2-24) - PICKUP DRIVE & SUSPENSION ASSEMBLY, (8520 ONLY) Driveline

1

1790D

CHAIN (AG)

CHAIN - roller, #40 (10 foot bulk)

2шт.

2

241-1314

CHAIN LINK

LINK - connector, R/C #40

2шт.

3

61424

KEY

1/4 X 1-1/4 KEY - gib

2шт.

4

700112390

SPROCKET ASSY.

SPROCKET WA 40B24

2шт.

5

700112401

FLANGE

- outer

2шт.

6

705533

WASHER

3/8 HARDENED PLAIN WASHER

7шт.

7

700112399

PLATE

- pivot, pickup

2шт.

8

700112400

SPACER

- pivot

2шт.

9

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

11

704031

NUT

1/2-13 H

7шт.

12

50534

FLANGED BEARING

- bearing

8шт.

13

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

4шт.

14

700112393

AUGER

WA - left

1шт.

15

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

6шт.

16

700112394

AUGER

WA - right

1шт.

17

700706020

SPRING

- extension

1шт.

18

NLS

NO LONGER SERVICED

3/8-16 X 6-1/2 EYE BOLT

1шт.

19

700116559

STRIPPER

2шт.

20

704023

NUT,3/8"-16, G5

3/8-16 H

14шт.

21

700706021

RATCHET

WRENCH - ratchet

1шт.

22

768036

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 RHSNB

6шт.

23

492-11038

LOCK WASHER,3/8"

3/8"

12шт.

24

700047

BOLT

3/8-16 X 1 RHSNB

6шт.

25

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

8шт.

26

704239

FRONT AXLE

5/16-18 HFSLN

8шт.

27

57604

V-BELT

1шт.
