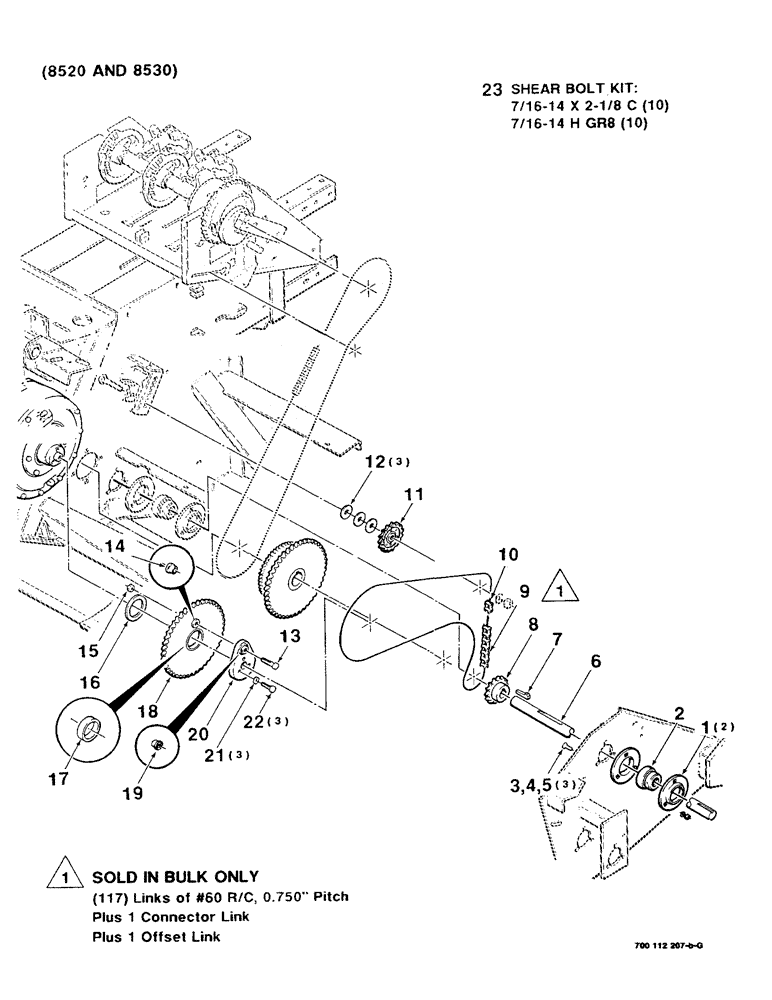

Запчасти Case IH 8520 (2-22) - DRIVE ASSEMBLY (CONTINUED), (8520 AND 8530) Driveline

1

50534

FLANGED BEARING

- bearing

2шт.

2

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

3

700047

BOLT

3/8-16 X 1 RHSNB

3шт.

4

705038

CONTROL VALVE

3/8"

3шт.

5

704023

NUT,3/8"-16, G5

3/8-16 H

3шт.

6

700112233

SHAFT

- drive, pickup (8520 only)

1шт.

700116636

SHAFT

- drive, pickup (8530 only)

1шт.

7

61622

BUCKET TOOTH KEY

1/4 X 1-1/2 KEY - gib

1шт.

8

7747074

PINION

SPROCKET 60B14

1шт.

9

611362R91

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

10

241-1316

LINK,19.05mm Pitch

LINK - connector, #60 R/C

1шт.

11

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler

1шт.

12

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

3шт.

13

7884950

BOLT

7/16-14 X 2-1/8 C

1шт.

14

700112222

SLEEVE

- shear

1шт.

15

7774995

NUT,7/16"-14, G8

7/16-14 H GR8

1шт.

16

700112230

WASHER

1шт.

17

700705916

BRONZE BUSHING

BUSHING - bronze

1шт.

18

700112220

SPROCKET ASSY.

SPROCKET 60B44 (Includes items 14 & 17)

1шт.

19

7852718

SLEEVE

- shear

1шт.

20

700112223

ARM ASSY.

ARM (Includes item 19)

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

22

8701724

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 8

1/2-20 X 1-1/2 C GR8

3шт.

23

6521868

BOLT

SHEAR BOLT KIT - package includes: 7884950 (10) and 7774995 (10)

1шт.
