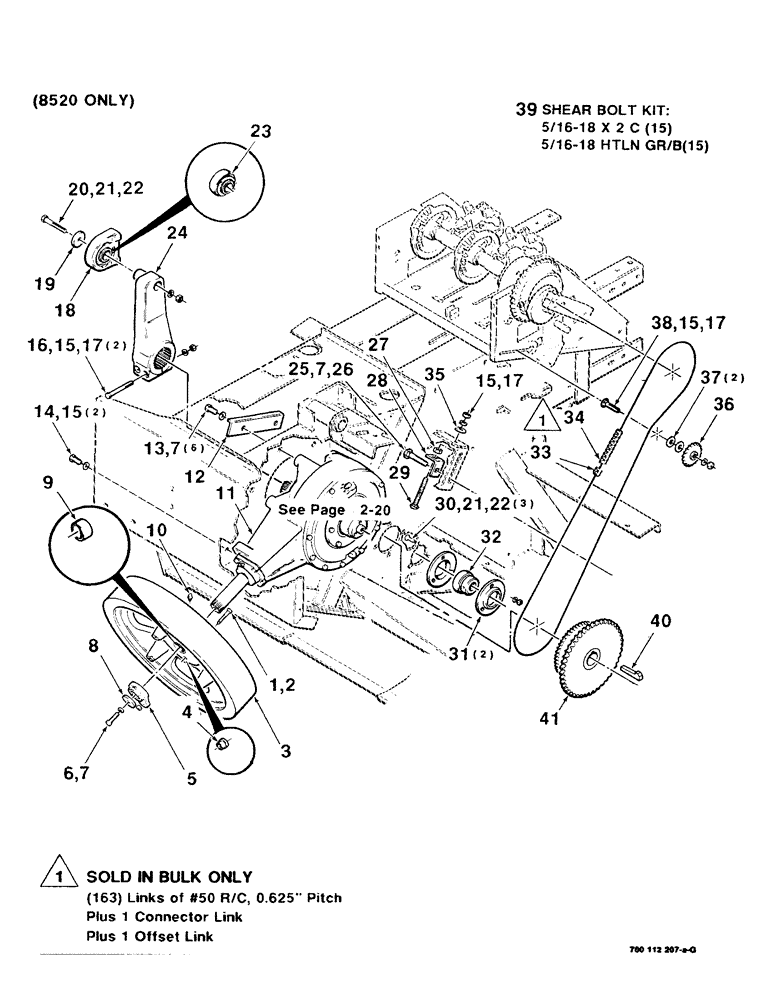

Запчасти Case IH 8520 (2-16) - DRIVE ASSEMBLY (GEARBOX, PLUNGER & KNOTTER), (8520 ONLY) Driveline

1

7703507

DECAL,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 C

1шт.

2

704163

LOCK NUT

5/16-18 HTLN GR/B

1шт.

3

700112225

FLYWHEEL

(Includes item 4 & 9)

1шт.

4

6853592

SLEEVE

- shear

1шт.

5

700112236

ARM

- shear bolt

1шт.

6

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 C

1шт.

7

705061

PLUG

5/8"

8шт.

8

6855423

WASHER

1шт.

9

700705831

BRONZE BUSHING

BEARING - bronze

1шт.

10

077016

1/4-28 ZERK

1шт.

11

700112212

DRIVE

GEARBOX ASSEMBLY

1шт.

12

700112232

ANGLE

STRAP

1шт.

13

7701873

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

5/8-11 X 1-1/4 C

6шт.

14

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 X 1 C

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

16

7701279

BOLT

1/2-13 X 5 C

2шт.

17

86516876

COVER

1/2-13 H

4шт.

18

700112336

BEARING ASSY,38.11mm ID

BEARING ASSEMBLY (Includes item 23)

1шт.

19

6875314

WASHER

1шт.

20

701342

BOLT

3/8-16 X 3-3/4 C

1шт.

21

705038

CONTROL VALVE

3/8"

4шт.

22

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

23

700706182

SPHERICAL BEARING,38.113 mm ID x 90 mm OD x 26.67 mm

BEARING - spherical

1шт.

24

700112218

CRANK

ARM - crank

1шт.

25

7870199

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

5/8-11 X 2-3/4 RHSNB

1шт.

26

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

27

704056

NUT

1/2-13 J

1шт.

28

700112234

ANGLE

- tightener

1шт.

29

7770787

FITTING,Sq Nk, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 X 4 FTRHSNB

1шт.

30

700047

BOLT

3/8-16 X 1 RHSNB

3шт.

31

050534

FLANGE - bearing

2шт.

32

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

33

241-1315

LINK, CONNECTING

LINK - cnnector, #50 R/C

1шт.

34

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

35

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

36

047142

SPROCKET - idler 50B17

1шт.

37

705632

WASHER

5/8 NARROW PLAIN WASHER

2шт.

38

7770704

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

39

700112472

KIT

SHEAR BOLT KIT - package includes: 7703507 (15) and 7704117 (15)

1шт.

40

061747

1/2 X 2-1/2 KEY - gib

1шт.

41

700112226

SPROCKET ASSY.

SPROCKET WA - double 50A40 & 60A44

1шт.
