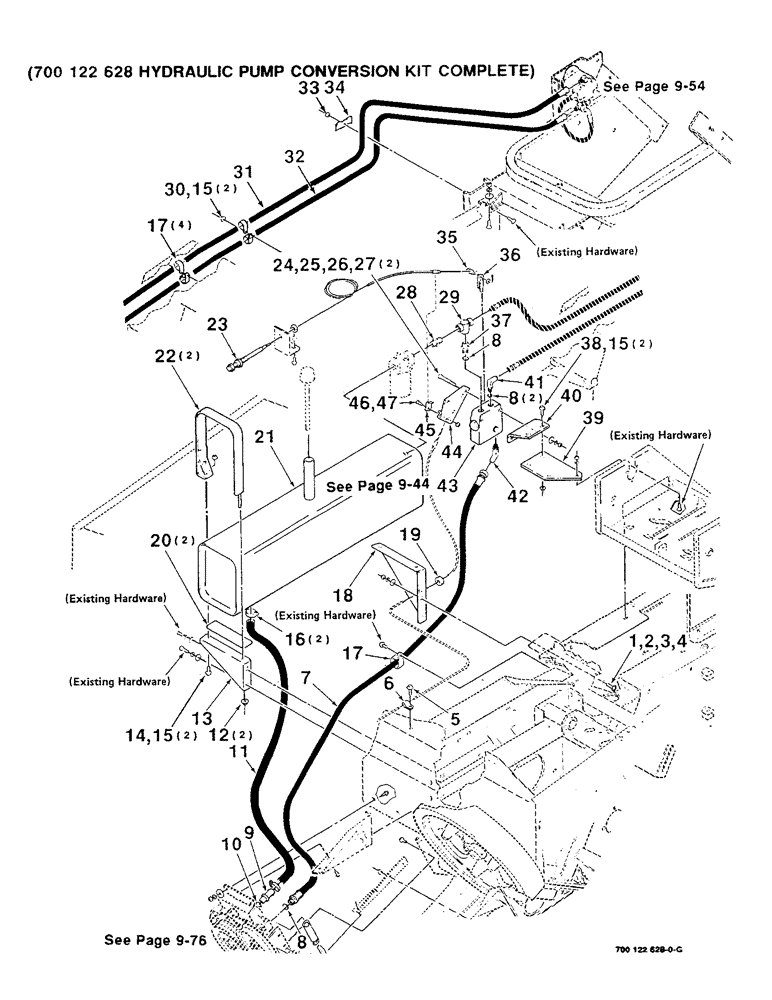

Запчасти Case IH 8520 (9-74) - HYDRAULIC PUMP CONVERSION KIT (RADIAL PISTON), (700122628 HYDRAULIC PUMP CONVERSION KIT COMPLETE) Decals & Attachments

700122628

KIT

HYDRAULIC PUMP CONVERSION KIT COMPLETE

1шт.

1

700701905

SCREW,Cross Pan Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CRPHMS

1шт.

2

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

3

705038

CONTROL VALVE

3/8"

1шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

5

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

1шт.

6

751628

CLAMP

- line

1шт.

7

700709945

HYDRAULIC HOSE,12.70 mm ID x 1352.00 mm, SAE 100R2

(Includes item 8) 12.70 mm ID x 1352.00 mm, SAE 100R2

1шт.

8

738450

O-RING

4шт.

9

7791460

INSERT

- hose (Includes item 10)

1шт.

10

738484

O-RING

1шт.

11

700709946

HOSE

- hydraulic, section

1шт.

12

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

700121512

SUPPORT

- tank, front

1шт.

14

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

2шт.

15

704247

NUT

3/8-16 HFSLN

6шт.

16

7720055

HOSE CLAMP

CLAMP - hose

2шт.

17

755769

CLAMP

- hose

5шт.

18

700121513

SUPPORT

- tank, rear

1шт.

19

827717

GROMMET

- rubber

1шт.

20

700121573

BEARING LINER

LINER - reservoir

2шт.

21

700709759

RESERVOIR ASSY.

RESERVOIR - oil

1шт.

22

700709944

STRAP

- reservoir

2шт.

23

700710340

CABLE

- control

1шт.

24

7701964

SCREW,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

25

705517

WASHER

1/4 HARDENED PLAIN WASHER

2шт.

26

705012

LOCK WASHER

1/4"

2шт.

27

704007

NUT,1/4"-20, G5

1/4-20 H

2шт.

28

7846108

HYD CONNECTOR,3/4"-14 NPTF

NIPPLE - male

1шт.

29

7846124

TEE

- swivel

1шт.

30

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

31

700709941

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R1

12.70 mm ID x 2600.00 mm, SAE 100R1

1шт.

32

700709942

HYDRAULIC HOSE,12.70 mm ID x 2600.00 mm, SAE 100R2

12.70 mm ID x 2600.00 mm, SAE 100R2

1шт.

33

88902

NUT,3/8"-16

3/8-16 HCLN

1шт.

34

451641

CLAMP

- hose

1шт.

35

7041932

ROD, CONNECTING

CONNECTOR

1шт.

36

1661479

ARM

- control

1шт.

37

700709943

ADAPTER

- male (Includes item 8)

1шт.

38

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

2шт.

39

700121572

SUPPORT

- plate, valve

1шт.

40

700121571

SUPPORT

ANGLE - support, valve

1шт.

41

7046501

ELBOW

90 DEGREE ELBOW (Includes item 8)

1шт.

42

7792377

ELBOW

45 DEGREE ELBOW (Includes item 8)

1шт.

43

7796394

VALVE

- flow control

1шт.

44

1661297

MOUNTING PARTS

MOUNTING - valve

1шт.

45

8797433

CLAMP

1шт.

46

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1/4-20 X 1/2 C

1шт.

47

704221

NUT

1/4-20 HFSLN

1шт.
