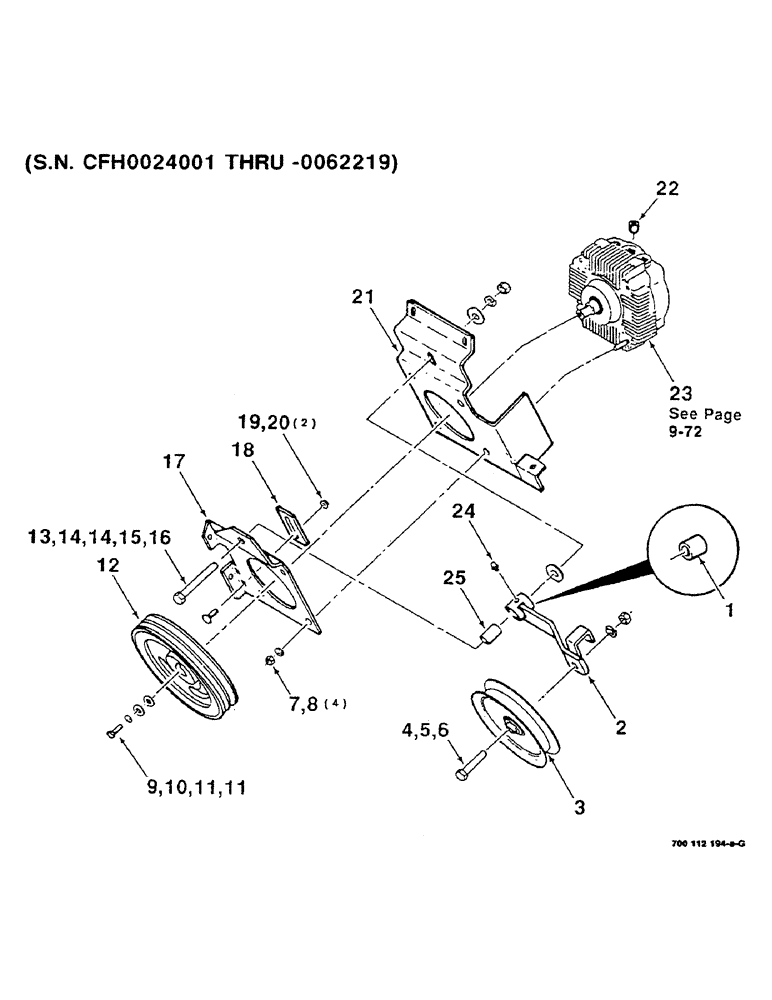

Запчасти Case IH 8520 (9-70) - HYDRAULIC PUMP AND CLUTCH ASSEMBLY (RADIAL PISTON), (S.N. CFH0024001 THRU CFH0062219) Decals & Attachments

1

740803

BUSHING

- oilite

1шт.

2

700112190

ARM

- ilder (Includes item 1)

1шт.

3

853317

FRONT IDLER

IDLER - flat

1шт.

4

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 C

1шт.

5

705061

PLUG

5/8"

1шт.

6

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

7

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

8

705038

CONTROL VALVE

3/8"

4шт.

9

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-24 X 3/4 C

1шт.

10

705020

LOCK WASHER

5/16"

1шт.

11

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

12

700111514

SHEAVE

- drive, pump

1шт.

13

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

704031

NUT

1/2-13 H

1шт.

17

700111513

PLATE

- front

1шт.

18

700115526

STOP

- adjustable

1шт.

19

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

2шт.

20

704239

FRONT AXLE

5/16-18 HFSLN

2шт.

21

700112733

PLATE

- rear

1шт.

22

7030695

PLUG

1шт.

23

700706367

HYDRAULIC PUMP

PUMP - hydraulic (Includes key)

1шт.

700710351

REMAN-INJECTION PUMP

PUMP - hydraulic (Includes key) rebuilt

1шт.

24

77016

LUBE NIPPLE

1/4-28 STRAIGHT ZERK

1шт.

25

700112189

BUSHING

1шт.
