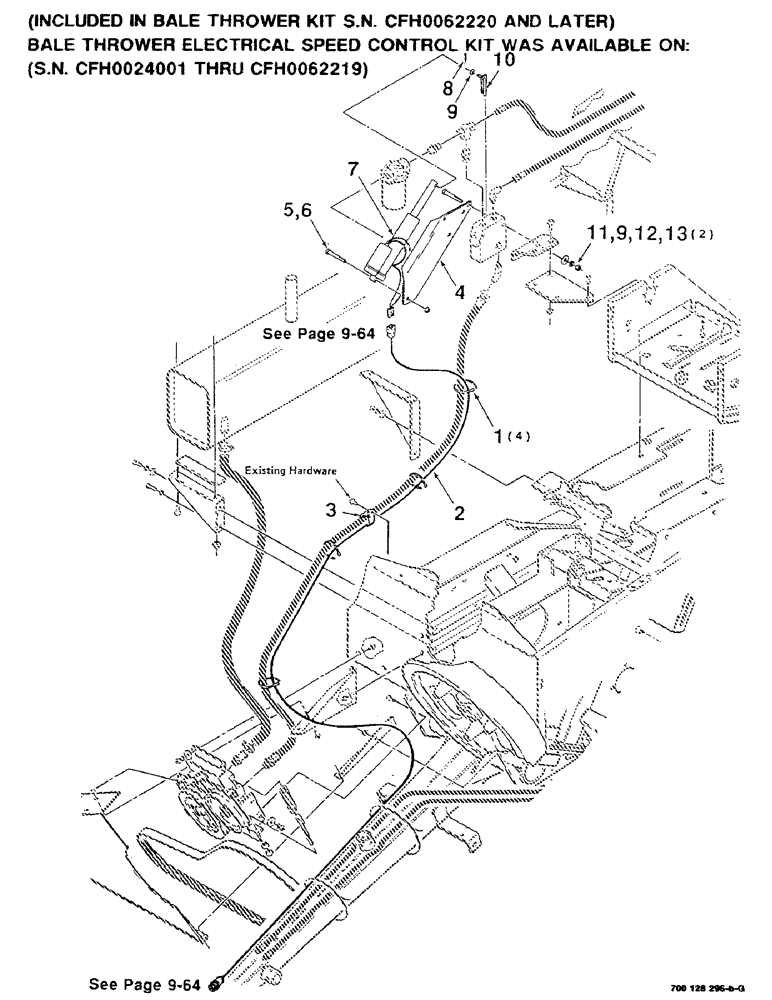

Запчасти Case IH 8520 (9-60) - BALE THROWER ELECTRICAL SPEED CONTROL ASSEMBLY Decals & Attachments

1

722470

MOUNTING CLIP

TIE - calbe

4шт.

2

700711380

HARNESS

- ire

1шт.

3

755769

CLAMP

- hose

1шт.

4

700124210

BRACKET

1шт.

5

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 X 2 C

1шт.

6

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

7

700711219

ACTUATOR

- linear

1шт.

8

62018

PIN

1/16 X 1/2 COTTER PIN

1шт.

9

705517

WASHER

1/4 HARDENED PLAIN WASHER

3шт.

10

700124207

ARM

ASEMBLY

1шт.

11

7701964

SCREW,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

12

705012

LOCK WASHER

1/4"

2шт.

13

704007

NUT,1/4"-20, G5

1/4-20 H

2шт.
