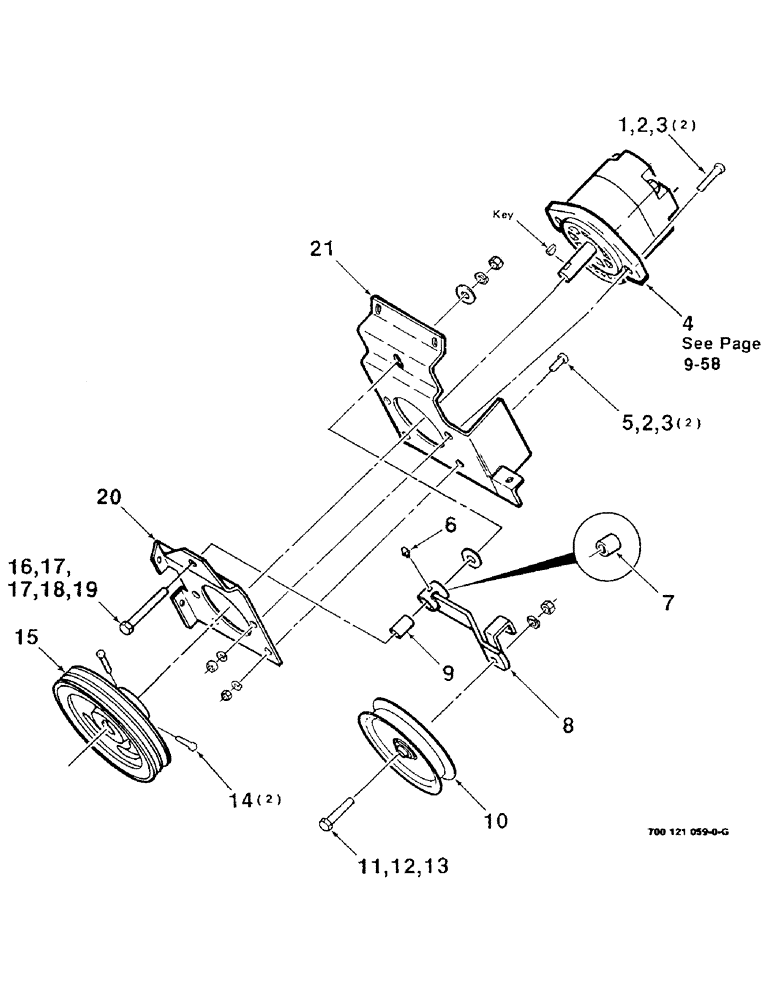

Запчасти Case IH 8520 (9-56) - HYDRAULIC PUMP AND CLUTCH ASSEMBLY (GEAR PUMP) Decals & Attachments

1

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 12-1/4 C

2шт.

2

705038

CONTROL VALVE

3/8"

4шт.

3

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

4

7796378

PUMP

- hydraulic (Includes key)

1шт.

5

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

2шт.

6

77016

LUBE NIPPLE

1/4-28 STRAIGHT ZERK

1шт.

7

740803

BUSHING

- oilite

1шт.

8

700112190

ARM

- idler (Includes item 7)

1шт.

9

700112189

BUSHING

1шт.

10

853317

FRONT IDLER

IDLER - flat

1шт.

11

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 C

1шт.

12

705061

PLUG

5/8"

1шт.

13

704130

NUT,5/8"-11, G5

5/8-11 H

1шт.

14

69187

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16-18 X 1 CPSQHSS

2шт.

15

1662626

SHEAVE

- drive, pump

1шт.

16

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

86516876

COVER

1/2-13 H

1шт.

20

700121576

LARGE PLATE

PLATE WA - front

1шт.

21

700121578

LARGE PLATE

PLATE WA - pump, rear

1шт.
