(9-54) - BALE THROWER HYDRAULIC MOTOR ASSEMBLY, (7796386 HYDRAULIC MOTOR COMPLETE)

Запчасти Case IH 8520 (9-54) - BALE THROWER HYDRAULIC MOTOR ASSEMBLY, (7796386 HYDRAULIC MOTOR COMPLETE) Decals & Attachments

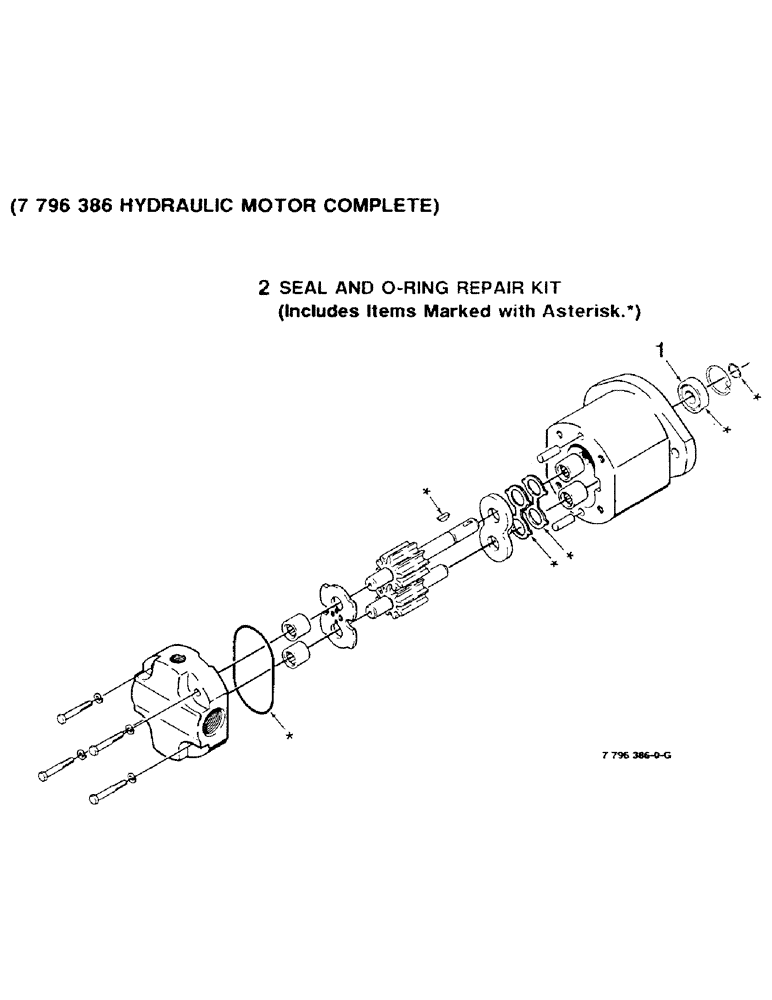

Схема запчастей Case IH 8520 - (9-54) - BALE THROWER HYDRAULIC MOTOR ASSEMBLY, (7796386 HYDRAULIC MOTOR COMPLETE) Decals & Attachments
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7796386

HYDRAULIC MOTOR

COMPLETE

1шт.

7796386 Hydraulic Motor rated flow is 7 GPM.

1шт.

1

1713486

SEAL

- shaft

1шт.

2

7738800

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.

Выбрано товаров: 4
