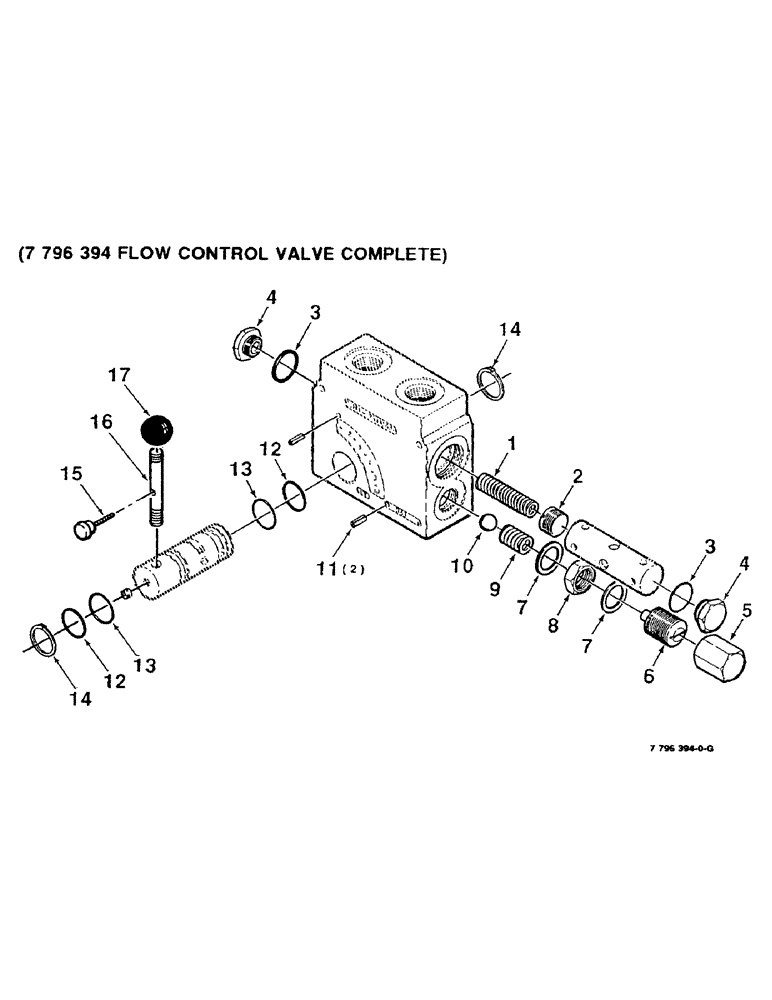

Запчасти Case IH 8520 (9-44) - HYDRAULIC FLOW CONTROL VALVE ASSEMBLY, (7796394 FLOW CONTROL VALVE COMPLETE) Decals & Attachments

7796394

VALVE

FLOW CONTROL VALVE COMPLETE

1шт.

1

8733313

SPRING

- metering

1шт.

2

8733354

PLUG

- slotted

1шт.

3

738484

O-RING

2шт.

4

8733305

PLUG

- main bore

2шт.

5

8733297

CAP

1шт.

6

8733347

ADJUSTMENT SCREW

- adjusting

1шт.

7

8733289

WASHER

- aluminum

2шт.

8

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/6-16 HEX JAM NUT

1шт.

9

8733321

SPRING

- relief

1шт.

10

7845738

BALL BEARING

BALL - steel

1шт.

11

63040

LUG

3/16 X 1 SLOTTED SPRING PIN

2шт.

12

8733370

BACK-UP RING

RING - back up

2шт.

13

700708088

O-RING

2шт.

14

840553

RING, SNAP

RING - snap

2шт.

15

700704950

THUMB SCREW

10-32 SCREW - thumb

1шт.

16

700704948

HANDLE

1шт.

17

700704949

KNOB

1шт.
