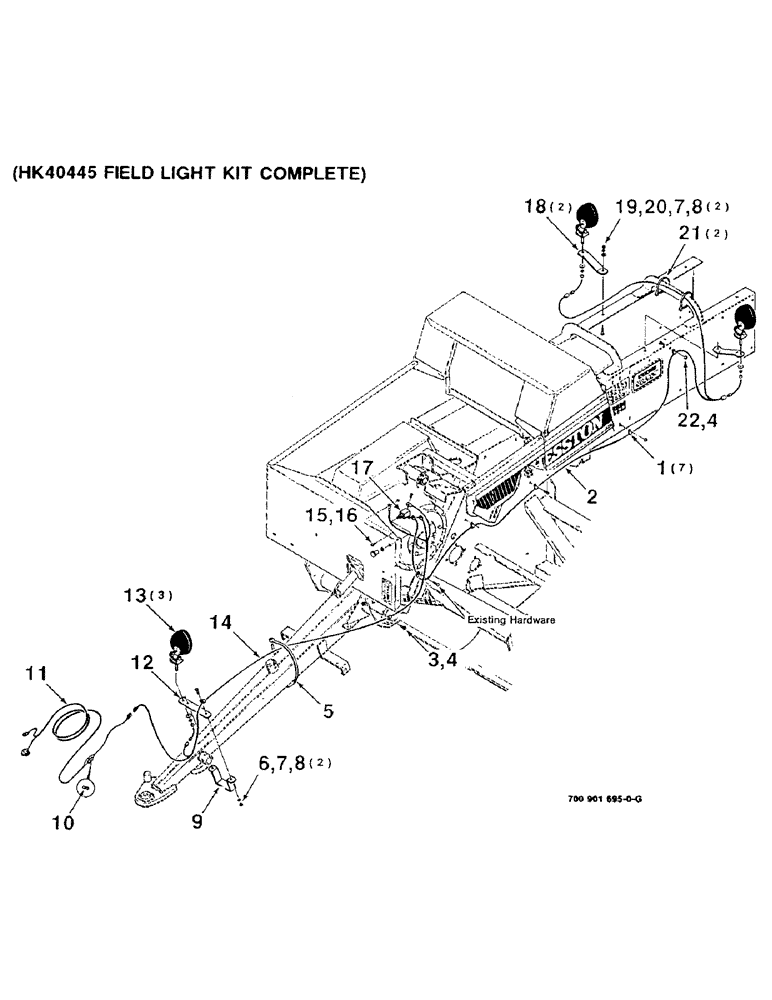

Запчасти Case IH 8520 (9-28) - FIELD LIGHT KIT, (HK40445 FIELD LIGHT KIT COMPLETE) Decals & Attachments

HK40445

LIGHT

FIELD LIGHT KIT COMPLETE

1шт.

1

751628

CLAMP

- line

7шт.

2

700704526

WIRE HARNESS

HARNESS - wiring, rear

1шт.

3

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HFSS

1шт.

4

704247

NUT

3/8-16 HFSLN

2шт.

5

7899966

STRAP

TIE - cable

1шт.

6

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

7

705038

CONTROL VALVE

3/8"

4шт.

8

704023

NUT,3/8"-16, G5

3/8-16 H

4шт.

9

700116986

CLAMP

- mounting

1шт.

10

1702364

FUSE

- 15 amp

1шт.

11

2700179

ELECTRICAL WIRE

HARNESS - wiring

1шт.

12

700116985

STRAP

- mounting

1шт.

13

41624

PIPE FITTING

3шт.

14

700704525

WIRE HARNESS

HARNESS -, Serial Range: wiring,-switch

1шт.

15

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

1шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

1шт.

17

041137

SWITCH

1шт.

18

700108708

STRAP

- bracket

2шт.

19

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

2шт.

20

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

2шт.

21

722470

MOUNTING CLIP

TIE - cable

2шт.

22

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

1шт.
