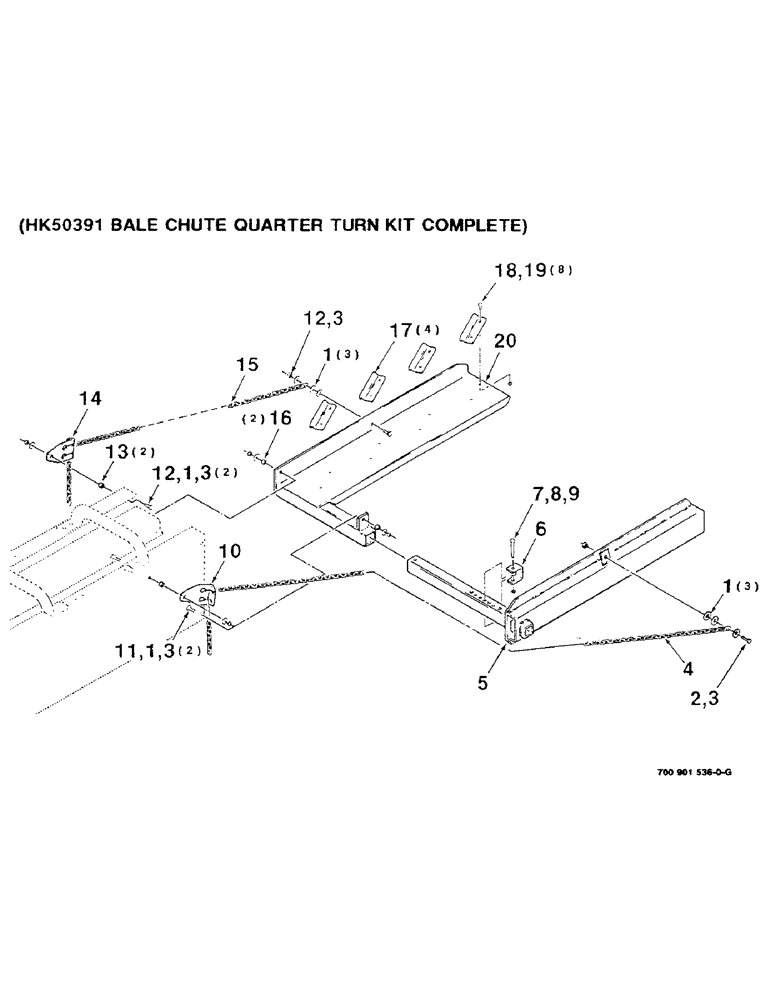

Запчасти Case IH 8520 (9-24) - BALE CHUTE QUARTER TURN KIT, (HK50391 BALE CHUTE QUARTER TURN KIT COMPLETE) Decals & Attachments

HK50391

EXTENSION

BALE CHUTE QUARTER TURN KIT COMPLETE

1шт.

1

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

10шт.

2

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

3

88902

NUT,3/8"-16

3/8-16 HCLN

6шт.

4

6450183

CHAIN (AG)

CHAIN - chute, left, 36" long

1шт.

5

700112628

CHUTE ASSY.

CHUTE WA - bale, left

1шт.

6

700108714

STOP

- extension

1шт.

7

7771751

BOLT,Hex, 5/16" - 18 x 3", Gr 5

5/16-18 X 3 C

1шт.

8

705020

LOCK WASHER

5/16"

1шт.

9

704015

NUT,5/16"-18, G5

5/16-18 H

1шт.

10

6856538

BRACKET

- chain, left

1шт.

11

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

2шт.

12

700047

BOLT

3/8-16 X 1 RHSNB

3шт.

13

6475495

BUSHING

SPACER

2шт.

14

6859102

BRACKET

- chain, right

1шт.

15

6559876

CHAIN (AG)

CHAIN - chute, right, 25" long

1шт.

16

6856512

SPACER

2шт.

17

6856520

ANGLE

- guide

4шт.

18

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

8шт.

19

704239

FRONT AXLE

5/16-18 HFSLN

8шт.

20

700112635

CHUTE (DOWNWARD)

CHUTE WA - bale, right

1шт.
