(9-20) - BALE CHUTE KIT, (HK40416 BALE CHUTE KIT COMPLETE)

Запчасти Case IH 8520 (9-20) - BALE CHUTE KIT, (HK40416 BALE CHUTE KIT COMPLETE) Decals & Attachments

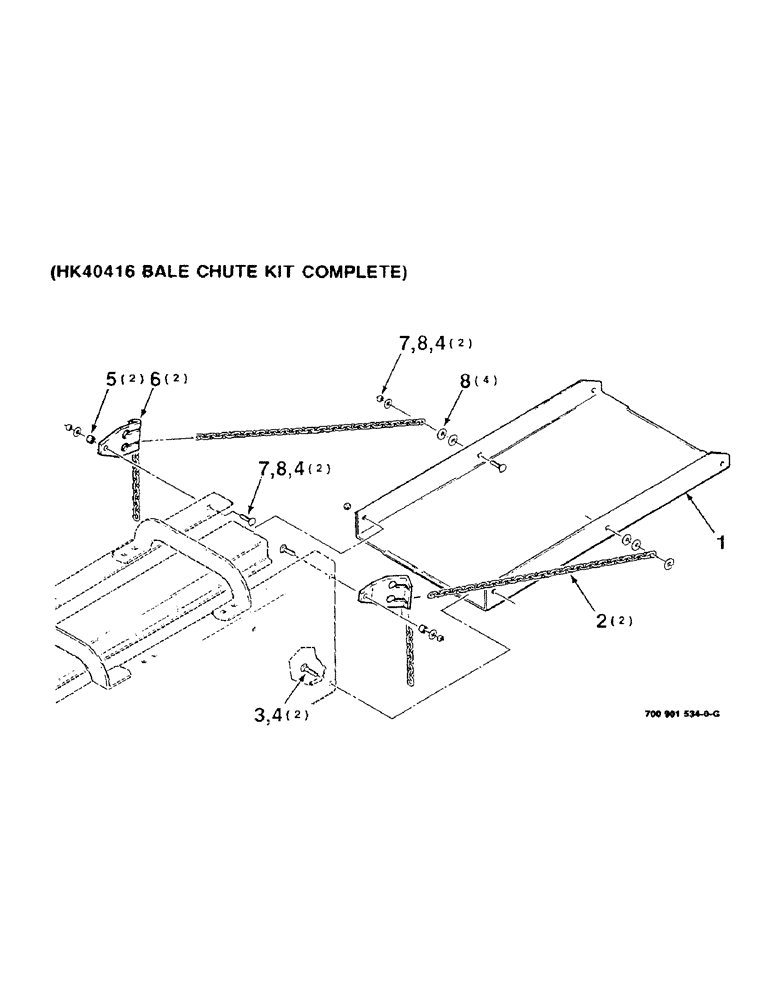

Схема запчастей Case IH 8520 - (9-20) - BALE CHUTE KIT, (HK40416 BALE CHUTE KIT COMPLETE) Decals & Attachments
4
3
5
2
7
7
4
8
8
8
4
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

HK40416

CHUTE (DOWNWARD)

BALE CHUTE KIT COMPLETE

1шт.

1

6554448

BAIL

TABLE - bale

1шт.

2

6559876

CHAIN (AG)

CHAIN - table

2шт.

3

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

4

88902

NUT,3/8"-16

3/8-16 HCLN

6шт.

5

6475495

BUSHING

- pivot

2шт.

6

6859102

BRACKET

- hanger

2шт.

7

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

8

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

8шт.

Выбрано товаров: 9
