(9-18) - PICKUP HYDRAULIC CYLINDER ASSEMBLY, (7075625 PICKUP HYDRAULIC CYLINDER COMPLETE)

Запчасти Case IH 8520 (9-18) - PICKUP HYDRAULIC CYLINDER ASSEMBLY, (7075625 PICKUP HYDRAULIC CYLINDER COMPLETE) Decals & Attachments

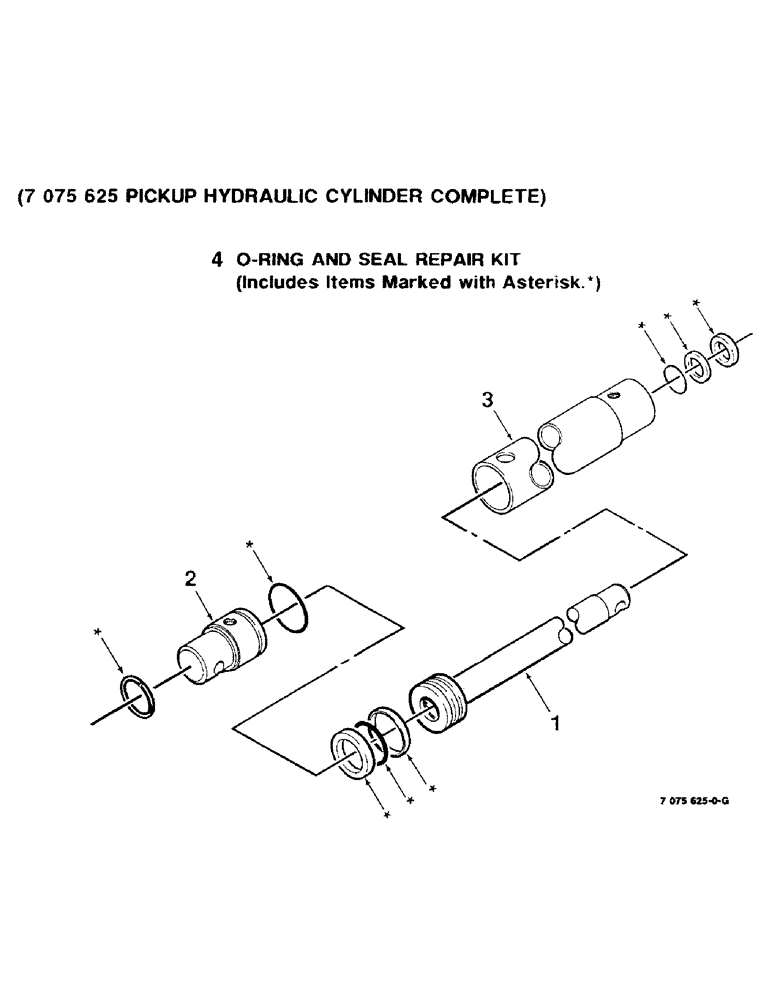

Схема запчастей Case IH 8520 - (9-18) - PICKUP HYDRAULIC CYLINDER ASSEMBLY, (7075625 PICKUP HYDRAULIC CYLINDER COMPLETE) Decals & Attachments
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7075625

CYLINDER

PICKUP HYDRAULIC CYLINDER COMPLETE

1шт.

1

7732266

ROD

PISTON ROD ASSEMBLY

1шт.

2

7732241

HEAD

- cylinder

1шт.

3

7732258

TUBE ASSY.

BARREL

1шт.

4

7732274

SEAL KIT

O-RING AND SEAL REPAIR KIT, Includes items in art marked with asterisk

1шт.

Выбрано товаров: 5
