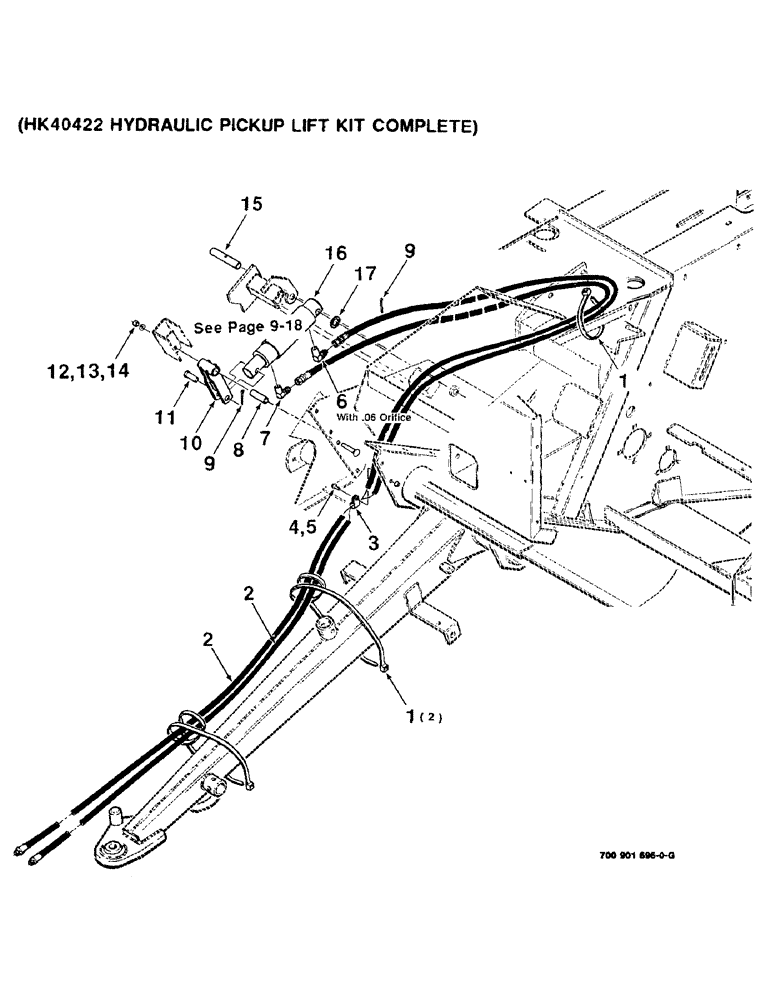

Запчасти Case IH 8520 (9-16) - HYDRAULIC PICKUP LIFT KIT, (HK40422 HYDRAULIC PICKUP LIFT KIT COMPLETE) Decals & Attachments

HK40422

HYDRAULIC PICKUP LIFT KIT COMPLETE

1шт.

1

7721798

CABLE

TIE - cable

3шт.

2

700704629

HOSE

- hydraulic

2шт.

3

7898737

CLAMP

- hose

1шт.

4

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 X 3/4 C

1шт.

5

704247

NUT

3/8-16 HFSLN

1шт.

6

7046063

ELBOW

90 DEGREE ELBOW (With .06 orifice)

1шт.

7

846170

ELBOW

90 DEGREE ELBOW

1шт.

8

700115583

BUSHING

1шт.

9

62174

PIN

5/32 X 1 COTTER PIN

2шт.

10

700115585

ARM/LIFTING DEVICE

ARM - mounting, cylinder

1шт.

11

63693

PIN

5/8 X 2 CLEVIS PIN

1шт.

12

7770738

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/2", Gr 5

1/2-13 X 3-1/2 RHSNB

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

86516876

COVER

1/2-13 H

1шт.

15

700116648

PIN

1шт.

16

7075625

CYLINDER

- hydraulic

1шт.

17

705632

WASHER

5/8 NARROW PLAIN WASHER

1шт.
