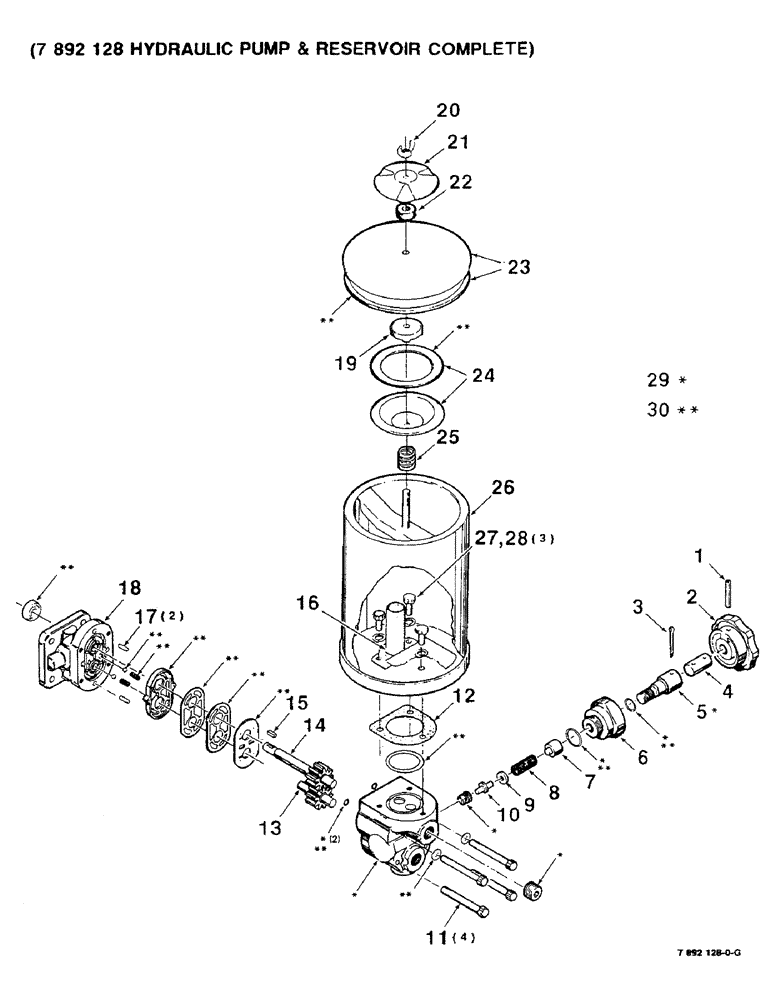

Запчасти Case IH 8520 (9-12) - BALE TENSIONER HYDRAULIC PUMP & RESERVOIR ASSEMBLY, (7892128 HYDRAULIC PUMP & RESERVOIR COMPLETE) Decals & Attachments

7892128

VALVE

HYDRAULIC PUMP & RESERVOIR COMPLETE

1шт.

1

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1/8 X 1-1/4 SLOTTED SPRING PIN

1шт.

2

8040552

KNOB

1шт.

3

62117

PIN

1/8 X 1-1/4 COTTER PIN

1шт.

4

8040545

ROD

- connecting

1шт.

5

8040560

ADJUSTMENT SCREW

- adjusting

1шт.

6

8040578

PLUG

ASSEMBLY - (Includes o-ring)

1шт.

7

8040503

GUIDE

- spring

1шт.

8

8040495

SPRING

1шт.

9

730820

SHIM

1шт.

10

731679

VALVE POPPET

POPPET ASSEMBLY

1шт.

11

7071871

12 PT SCREW

1/4-20 X 2-1/4 FLANGED 12 POINT SCREW

4шт.

12

730259

GASKET

- reservoir

1шт.

13

8040537

GEAR

- idler

1шт.

14

8040529

GEAR

- drive

1шт.

15

8040487

KEY

1шт.

16

730275

FILTER

ASSEMBLY

1шт.

17

730804

DOWEL,1/4" x 1/2"

PIN

2шт.

18

731067

LARGE PLATE

PLATE ASSEMBLY - front

1шт.

19

730895

CAP

- filter

1шт.

20

NLS

NO LONGER SERVICED

1/4-20 WING NUT

1шт.

21

668394R1

CAP

- breather

1шт.

22

730887

FILTER

- air

1шт.

23

733774

COVER

LID AND GASKET - reseroir

1шт.

24

733766

FILTER

FILER AND GASKET ASSEMBLY

1шт.

25

2700073

SPRING

- compression

1шт.

26

CAS2700072

RESERVOIR, HYDRAULIC

RESERVOIR - hydraulic

1шт.

27

2700074

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

5/16-18 X 5/8 FLANGED 12 POINT SCREW

3шт.

28

705020

LOCK WASHER

5/16"

3шт.

29

8040479

LARGE PLATE

BACK PLATE REPAIR KIT, Includes items in art marked with asterisk

1шт.

30

8040586

SEAL KIT

SEAL REPAIR KIT, Includes items in art marked with double asterisk

1шт.
