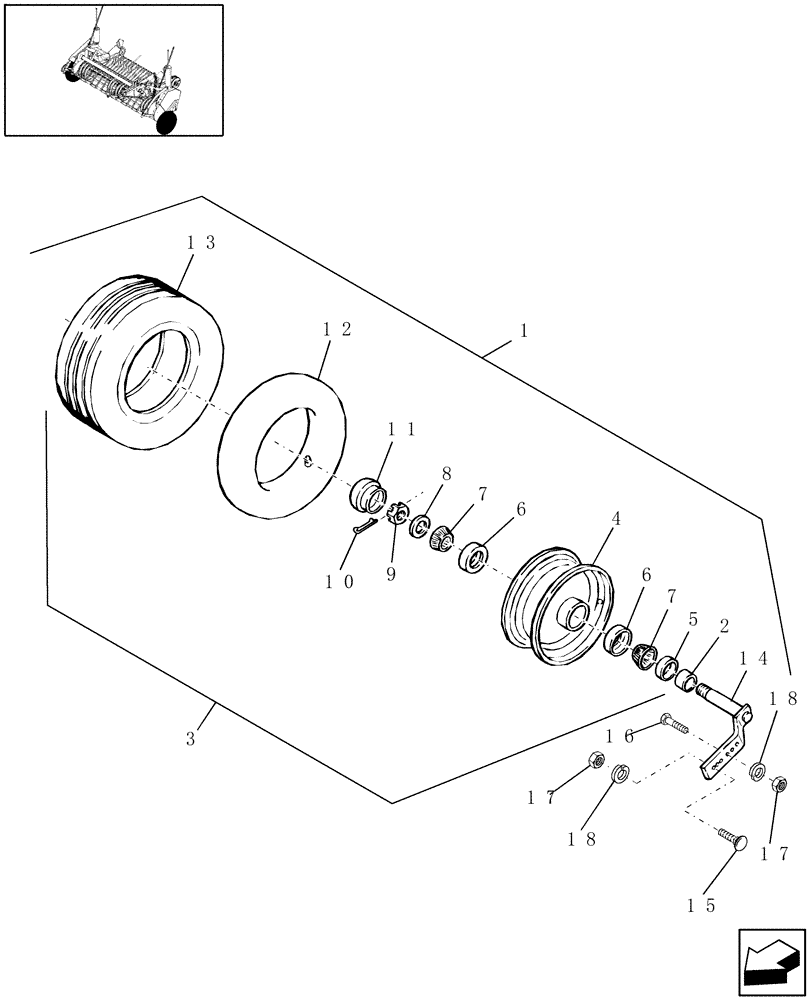

Запчасти Case IH RB444 (18.11) - DIA KIT, LH TIRE & WHEEL KIT, STANDARD PICKUP (18) - ACCESSORIES

1

87016425

DIA KIT, HARVESTER

LH Pickup Wheel, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86634544

SEALING RING COLLAR

2шт.

3

86616347

WHEEL ASSY

2шт.

4

86616348

WHEEL

2шт.

5

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

Oil

2шт.

6

132709

BEARING CUP,50.29mm OD x 10.67mm W

Tapered Roller

4шт.

7

132710

BEARING CONE,25.4mm ID x 14.73mm W

Tapered Roller

4шт.

8

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

Special, .060" Thk

2шт.

9

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

2шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

11

200734

HUB CAP

2шт.

12

25447

TIRE TUBE

Inner, 4.00 - 8

2шт.

13

136378

TYRE/TIRE

4.80/4.00 x 8, 4 Ply, Tubeless

2шт.

14

847876

SUPPORT

Bracket

2шт.

15

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

16

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

17

825-1412

NUT,M12, Cl 8

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.
