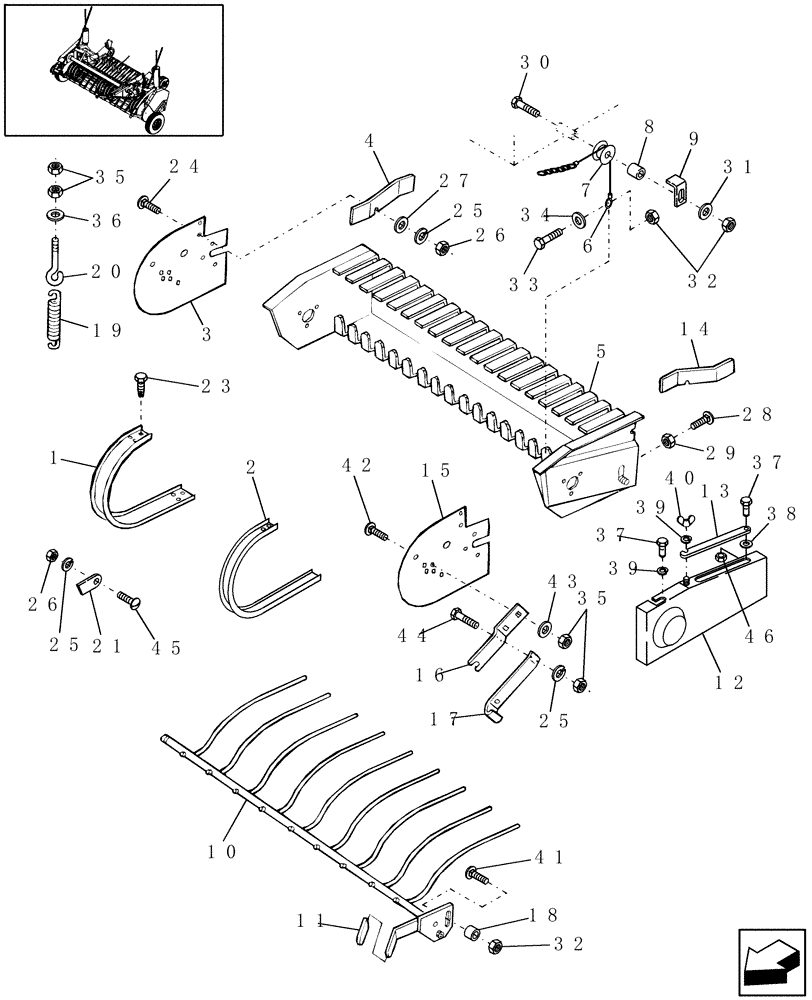

Запчасти Case IH RB444 (13.110) - PICKUP, FRAME, SHIELDS, WINDGUARD & LIFT (13) - FEEDER

1

86635007

GUARD

Pickup

2шт.

2

86619049

GUARD ASSY.

Pickup, 43.9"

11шт.

3

86635416

SIDE PLATE

RH

1шт.

4

86635052

DEFLECTOR

RH

1шт.

5

86635350

HEAD ASSY.

Pickup

1шт.

6

9619092

CABLE

1шт.

7

382898

PULLEY

1шт.

8

285394

SPACER,10.32mm ID x 15.88mm OD x 14.29mm L

1шт.

9

86635064

ANGLE

2шт.

10

86635048

SUPPORT ASSY.

1шт.

11

791502

HANDLE GRIP

Vinyl

1шт.

12

86618993

SHIELD

1шт.

13

9617379

STRIP-GASKET

1шт.

14

86635050

DEFLECTOR

LH

1шт.

15

86635414

SIDE PLATE

LH

1шт.

16

86635044

BRACKET

2шт.

17

86635041

LATCH

2шт.

18

44612

SPACER

2шт.

19

86529708

SPRING

1шт.

20

45314

EYEBOLT

G2, 3/8"-16 x 7"

1шт.

21

86635010

BRACKET

2шт.

22

602808

TINE

1шт.

Welding Required

1шт.

23

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

80шт.

24

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

10шт.

26

825-1406

NUT,M6, Cl 8

4шт.

27

495-21031

WASHER,1/4"

2шт.

28

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

29

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

30

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

31

495-21044

WASHER,3/8"

2шт.

32

832-46410

NUT,M10 x 1.5, Cl 8

3шт.

33

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

34

495-21044

WASHER,3/8"

3шт.

35

825-1410

NUT,M10, Cl 8

10шт.

36

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

1шт.

37

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

38

495-11034

WASHER,5/16", SAE

1шт.

39

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

40

934900R1

WING NUT

Wing, M8 x 1.25

1шт.

41

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

42

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

43

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

44

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

45

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

Cylinder Hd

2шт.

46

832-46408

NUT,M8 x 1.25, Cl 8

1шт.
