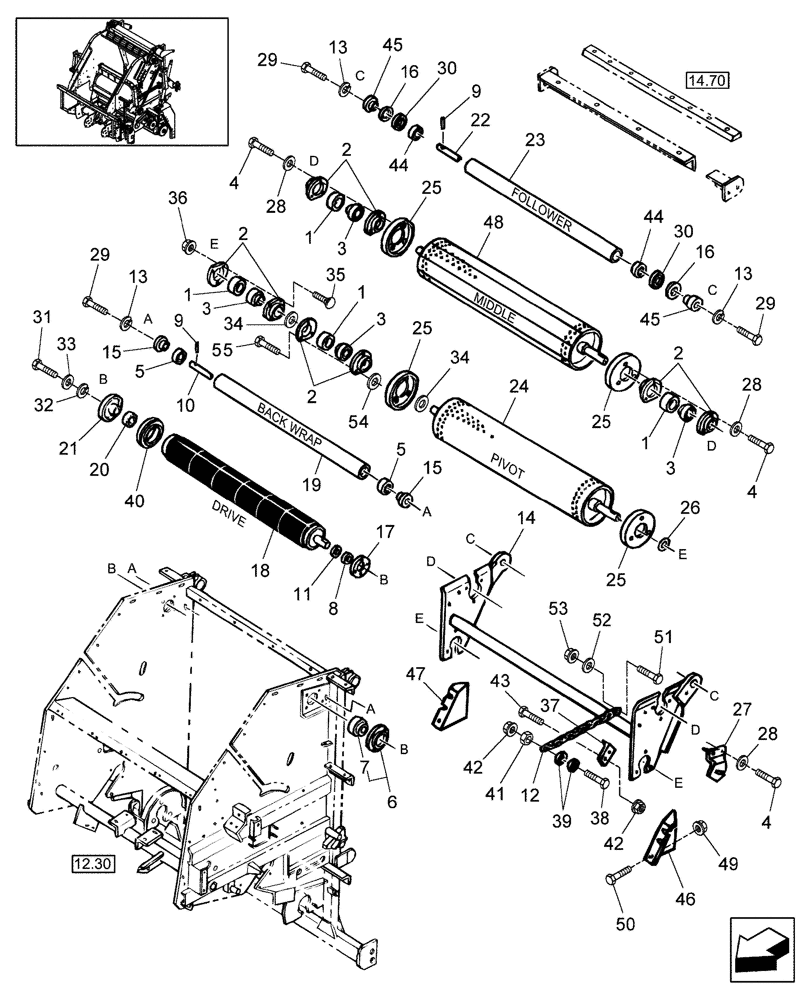

Запчасти Case IH RB444 (12.34) - MAIN FRAME, SLEDGE & SLEDGE ROLLERS (12) - MAIN FRAME

1

517645R11

COLLAR

Locking, Includes: Set Screw

6шт.

2

86620026

FLANGED BEARING

16шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

10шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

5

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

6

9608076

BEARING ASSY,82.6 mm ID x 138 mm OD x 24 mm

Includes: Ref. 7

1шт.

7

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

1шт.

8

140194

WASHER,41mm ID x 48 mm OD x 1mm Tk

M40

1шт.

9

838-5526

LOCK PIN,M5 x 26, Slotted

3шт.

10

9823371

SHAFT

Long, Includes: (1) Ref. 9

1шт.

11

9608084

WASHER

Radiused

1шт.

12

143360

CHAIN

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

14

86635388

SUPPORT

Roller

1шт.

15

86521602

SUPPORT

2шт.

16

9841725

O-RING,0.21" Thk x 1.85" ID, -328, 40 Duro

M47.00 ID x 5.3

2шт.

17

86635219

COVER

1шт.

18

86592924

ROLLER

Drive

1шт.

19

9842286

ROLLER

Backwrap, Includes: Bearings & Roller

1шт.

20

353125

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

21

86635217

SUPPORT

1шт.

22

9823372

SHAFT,1135mm L

Short, Includes: Ref. 9

1шт.

23

9842288

ROLLER,88.9mm OD x 1142mm L

Follower, Includes Bearings & Roller

1шт.

24

86635335

ROLLER

Pivot

1шт.

25

86635330

COVER

Roller End

6шт.

26

626286

SNAP RING

Ext, 1.50"

1шт.

27

9609939

SUPPORT

1шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

29

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

30

9805640

SHIELD,38.3mm ID x 74.5mm OD x 3.5mm Thk

Seal

2шт.

31

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

32

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

33

495-21069

WASHER,5/8"

1шт.

34

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

9шт.

35

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

36

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

37

9609940

ANGLE

2шт.

38

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

39

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

4шт.

40

9608110

HOUSING

1шт.

41

825-1410

NUT,M10, Cl 8

4шт.

42

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

43

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

44

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

45

9805638

SUPPORT

2шт.

46

9822830

SHIELD

LH

1шт.

47

9822833

SHIELD

RH

1шт.

48

86635369

ROLLER

Top

1шт.

49

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

50

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

51

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

52

495-21038

WASHER,5/16"

2шт.

53

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

54

394629

WASHER,10.5mm ID x 24mm OD x 3mm Thk

6шт.

55

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.
