(01.31[1]) - POWER TAKE OFF, 540 RPM, SHEARBOLT, NORTH AMERICA, P.I.N. Y8N038893 & PRIOR

Запчасти Case IH RB444 (01.31[1]) - POWER TAKE OFF, 540 RPM, SHEARBOLT, NORTH AMERICA, P.I.N. Y8N038893 & PRIOR (01) - POWER TAKE OFF

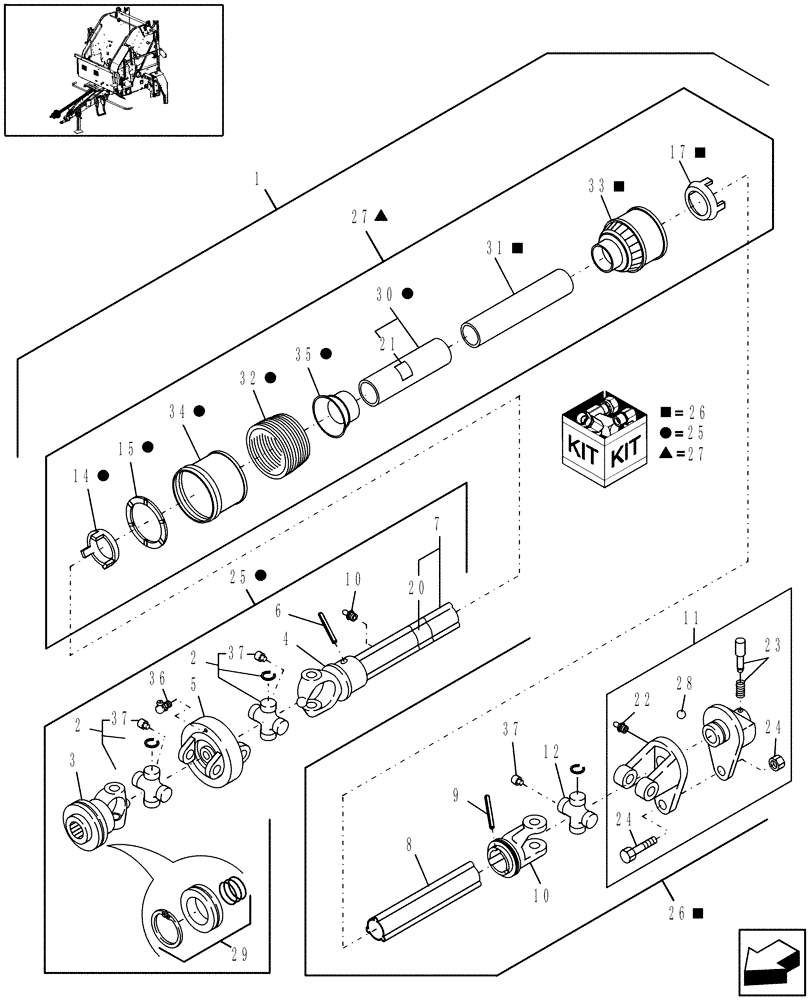

Схема запчастей Case IH RB444 - (01.31[1]) - POWER TAKE OFF, 540 RPM, SHEARBOLT, NORTH AMERICA, P.I.N. Y8N038893 & PRIOR (01) - POWER TAKE OFF
36
37
4
20
25
24
35
26
10
32
33
28
11
7
23
17
26
24
27
15
3
29
30
21
5
6
22
1
34
37
31
14
25
37
2
2
9
27
8
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87643180

PTO

540 RPM, Shearbolt

1шт.

2

87517787

U-JOINT SPIDER

1шт.

3

87518490

YOKE

1шт.

4

87520072

YOKE

1шт.

5

87517785

BODY

1шт.

6

87520073

ROLL PIN

1шт.

7

87520074

OUTER SHIELD

1шт.

8

87520075

INNER SHIELD

1шт.

9

86625846

PIN

1шт.

10

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

11

87520077

HUB ASSY.

Shearbolt

1шт.

12

87520078

SPIDER ,U-JOINT

JOINT, SPIDER

1шт.

13

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

14

700708773

BEARING COVER

1шт.

15

87517775

SHIELD

1шт.

16

NSS

NOT SOLD SEPARAT

6шт.

17

277839

RING

1шт.

18

NSS

NOT SOLD SEPARAT

5шт.

19

NSS

NOT SOLD SEPARAT

1шт.

20

849472

DANGER DECAL

English

1шт.

20

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

21

849471

DANGER DECAL

English

1шт.

21

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

22

700707187

NIPPLE, LUBE

NIPPLE

1шт.

23

782083

LOCK PIN

1шт.

24

87520079

KIT

1шт.

25

87520080

FRONT PTO ASSY

1шт.

26

87520081

REAR PTO ASSY

1шт.

27

87643181

REPAIR KIT

Safety Shield

1шт.

28

87012755

BALL

6.35mm

23шт.

29

87018800

KIT

1шт.

30

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

31

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

32

NSS

NOT SOLD SEPARAT

Cover

1шт.

33

NSS

NOT SOLD SEPARAT

End

1шт.

34

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

35

NSS

NOT SOLD SEPARAT

End

1шт.

36

933205R91

LUBE NIPPLE,90 Degree, M8 x 1.25

1шт.

37

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.
