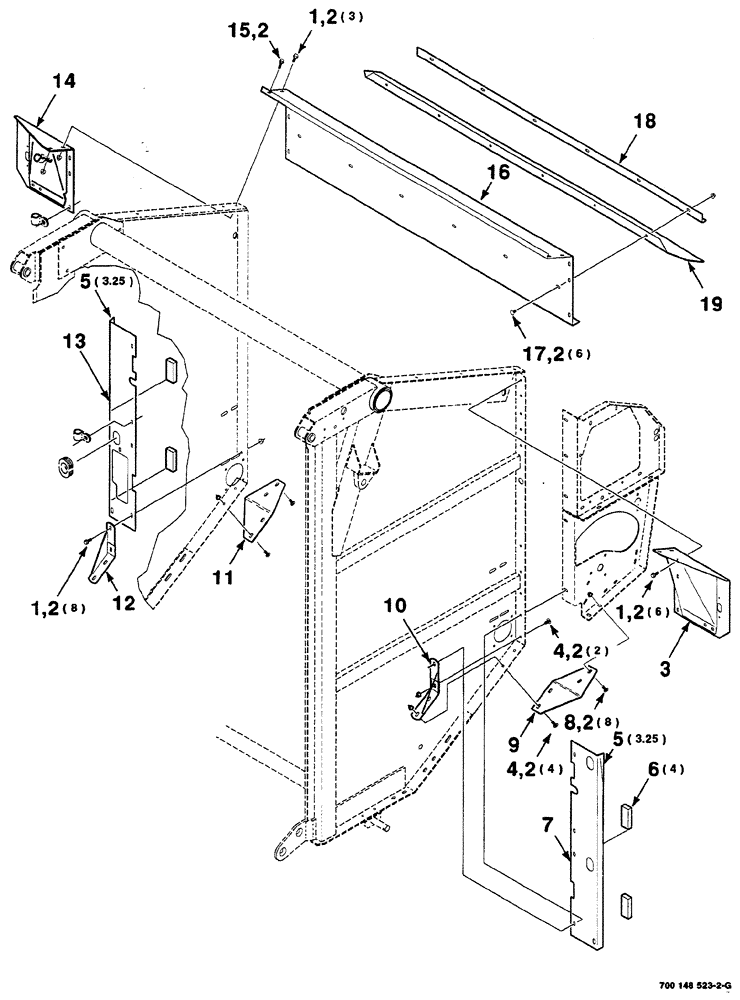

Запчасти Case IH RS561A (7-034) - TAILGATE SHIELDS, WITH MESH WRAP (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

17шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

38шт.

3

700148766

SUPPORT

WA, L.H.

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

6шт.

5

700717353

TAPE

3 M, adhesive, ft., 108 ft. bulk

6.5шт.

6

700717354

PAD

foam rubber

4шт.

7

700148773

ANGLE

L.H.

1шт.

8

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

8шт.

9

700148776

SUPPORT

L.H.

1шт.

10

700151511

SUPPORT

WA, L.H.

1шт.

11

700148777

SUPPORT

R.H.

1шт.

12

700151517

SUPPORT

WA, R.H.

1шт.

13

700148774

ANGLE

R.H.

1шт.

14

700148770

SUPPORT

WA, R.H.

1шт.

15

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange, GR8

1шт.

16

700148765

SUPPORT

upper

1шт.

17

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

18

700148790

ANGLE

1шт.

19

700717257

SHIELD

rubber

1шт.
