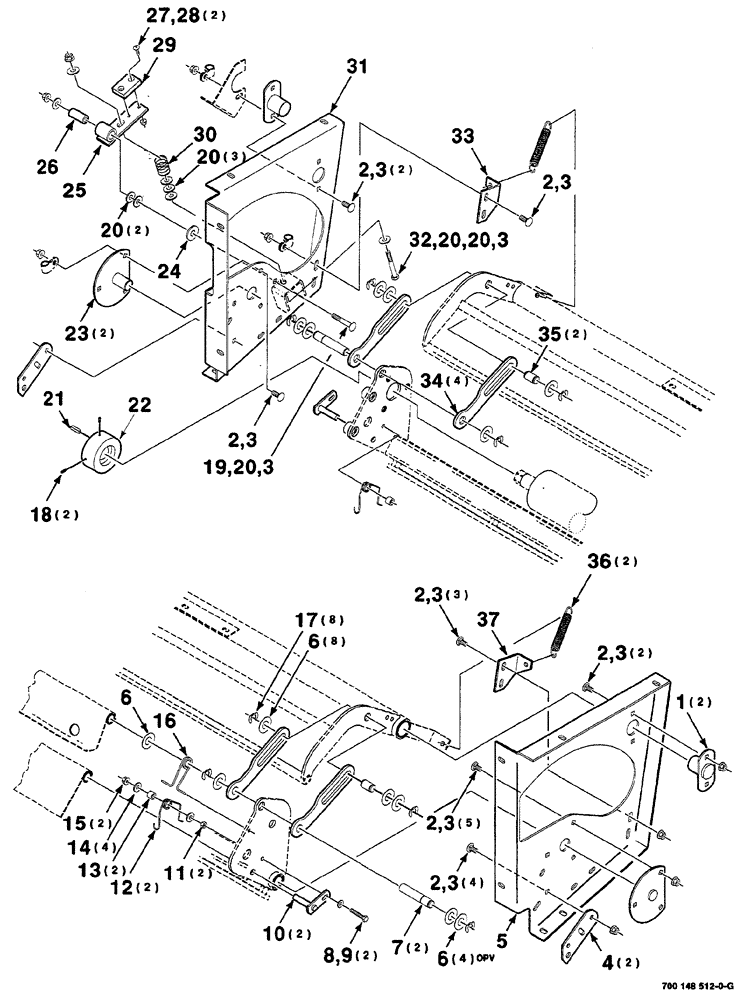

Запчасти Case IH RS561A (7-028) - MESH WRAP FRAME ASSEMBLY, LOWER (12) - MAIN FRAME

1

700148550

MOUNTING PARTS

WA

2шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

18шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

20шт.

4

700148547

MOUNTING PARTS

2шт.

5

700148539

PANEL

L.H.

1шт.

6

195-2089

WASHER,25/32" x 1 1/2" x .083"

GAUGE 3/4" x 18, wide rim machinery bushing

13шт.

7

700148543

PIN

2шт.

8

7772858

BOLT,Hex, 5/16" x 1 3/4", Gr 5

5/16"-18 x 1-3/4", full thread hex. cap screw

2шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

10

700148545

PIN

WA

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

700717039

SPRING

torsion

2шт.

13

442178

BUSHING

2шт.

14

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16", wide, plain

4шт.

15

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

2шт.

16

700718011

SPRING

torsion

1шт.

17

700718093

RING

retaining, extension

8шт.

18

83-516

SET SCREW,Hex Soc, 5/16"-18 x 1"

5/16"-18 x 1", cup point hex. socket, NP

2шт.

19

433-644

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

3/8"-16 x 2-3/4", round head square neck

1шт.

20

496-81010

WASHER

3/8", hardened, wide, plain

8шт.

21

Q53

KEY,1/4" Sq x 1", Par

1шт.

22

700148554

DRUM

brake

1шт.

23

700148537

MOUNTING PARTS

WA

2шт.

24

700711557

WASHER

1/2", hardened, wide, plain

1шт.

25

700125828

SUPPORT

WA, brake

1шт.

26

700109003

BUSHING

1шт.

27

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

GR, 60 M

2шт.

28

1703354

NUT

1/4"-20, hex. flange top lock, GR/G

2шт.

29

700710930

PAD

brake

1шт.

30

58107

SPRING

compression

1шт.

31

700148540

PANEL

WA, R.H.

1шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

33

700148557

MOUNTING PARTS

R.H.

1шт.

34

700148549

STRAP

4шт.

35

700148548

PIN

2шт.

36

7758220

SPRING

extension

2шт.

37

700148556

MOUNTING PARTS

L.H.

1шт.
