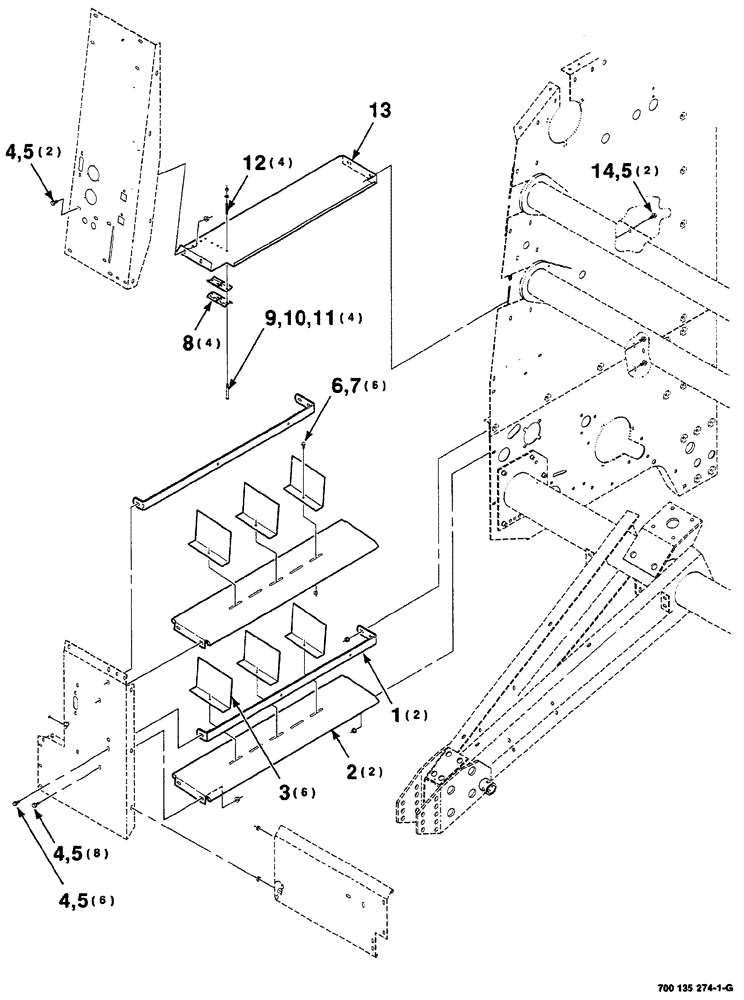

Запчасти Case IH RS561A (7-026) - TWINE BOX ASSEMBLY (12) - MAIN FRAME

1

700135612

GUARD

twine

2шт.

2

700135596

SUPPORT

twine

2шт.

3

6868459

DIVIDER

6шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

18шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

6шт.

8

6549869

SUPPORT

BRACKET tension

4шт.

9

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1/4"-20 x 2-3/4", hex. cap screw

4шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4", hardened, plain

4шт.

11

232-4114

LOCK NUT,1/4"-20, GC

1/4"-20, hex. top, GR/B

4шт.

12

700707677

SPRING

compression

4шт.

13

700132898

SUPPORT

WA, upper

1шт.

14

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.
