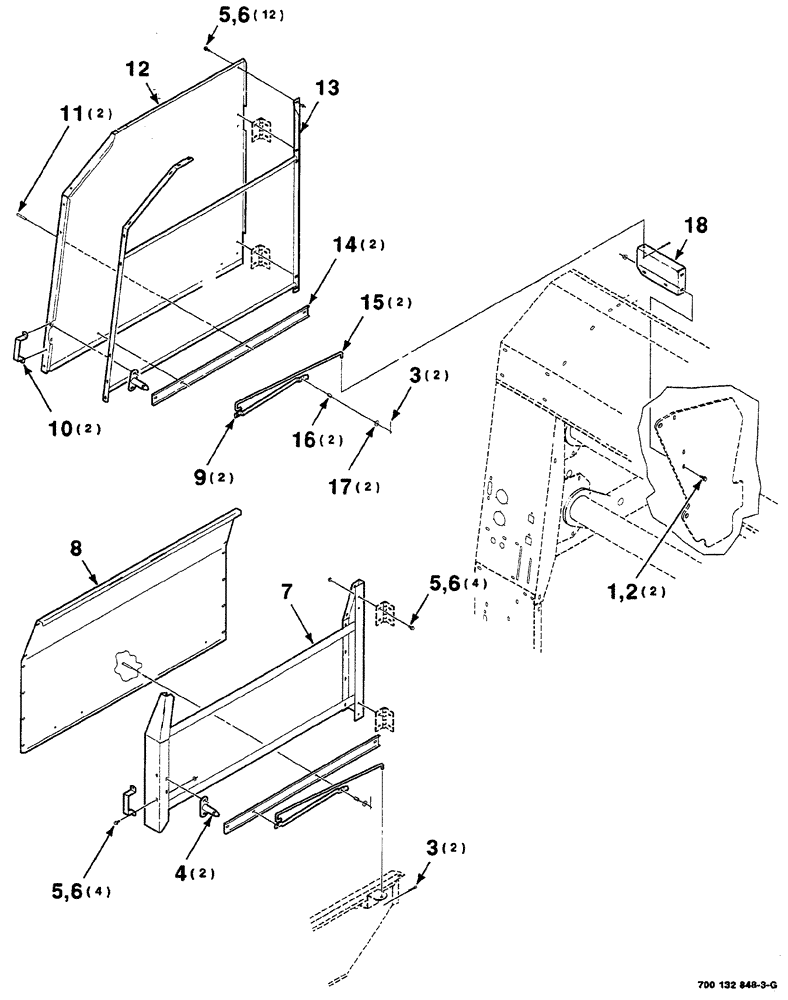

Запчасти Case IH RS561A (7-022) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, RIGHT (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

2шт.

3

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

4

700135648

PIN

WA

2шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

20шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

20шт.

7

700150812

FRAME

WA, R.H., shield, with reflector Decal

1шт.

8

700150811

SHIELD

lower, R.H., includes: Decals

1шт.

9

700117061

LATCH

2шт.

10

700135650

HANDLE

2шт.

11

439-5532

HEADED PIN,5/16" x 2"

clevis 5/16" x 2"

2шт.

12

700132990

SHIELD

upper, R.H.

1шт.

13

700132701

SUPPORT

WA, R.H.

1шт.

14

700132503

CHANNEL

2шт.

15

700117067

SUPPORT

2шт.

16

754606

SPRING

compression

2шт.

17

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16", wide, plain

2шт.

18

700132897

SUPPORT

R.H

1шт.
