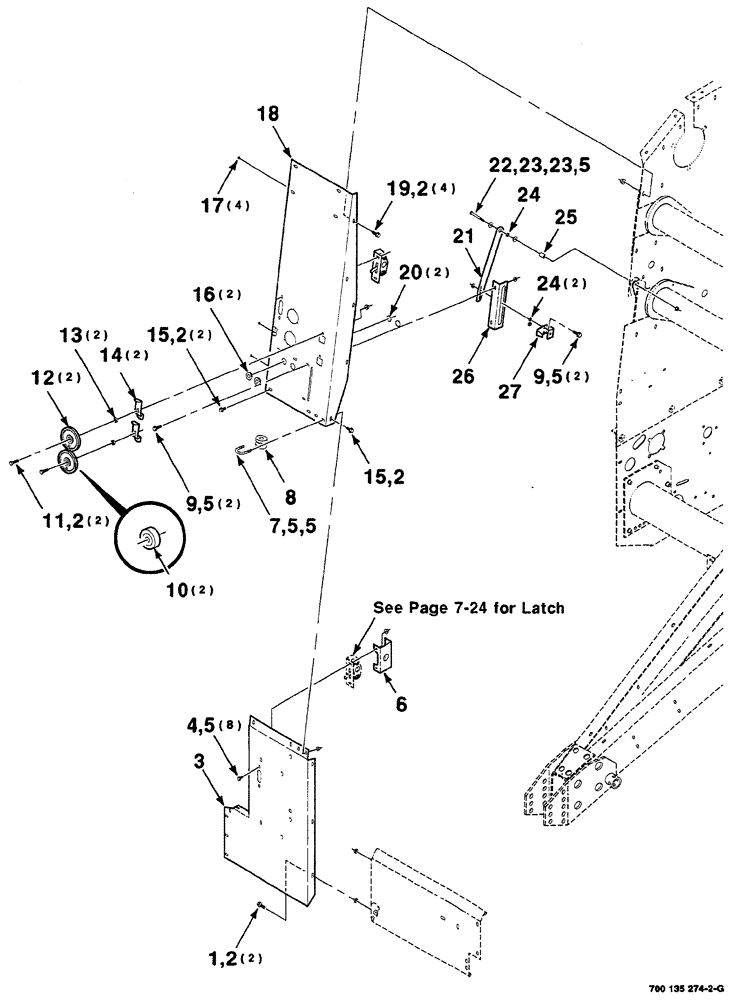

Запчасти Case IH RS561A (7-018) - LATCH SUPPORT AND BALE INDICATOR ASSEMBLIES, RIGHT (12) - MAIN FRAME

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange, GR8

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

11шт.

3

700132933

SHIELD

lower, R.H.

1шт.

4

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

5

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16"-18, hex. flange top lock, GR/G

15шт.

6

700132899

SHIELD

latch

1шт.

7

51200861

U-BOLT

1шт.

8

7745003

GUIDE

1шт.

9

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16"-18 x 1", hex. washer head machine screw

4шт.

10

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

700714888

PULLEY

ASSY.

2шт.

13

700116106

SPACER

2шт.

14

700135802

SUPPORT

GUIDE

2шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

16

700107977

GUIDE

twine

2шт.

17

700715104

BUMPER

4шт.

18

700153716

SHIELD

upper, R.H., includes: Decals

1шт.

19

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

20

100-11100

SNAP RING,#100, Ext

2шт.

21

700150149

LINK

1шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

23

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16", wide, plain

2шт.

24

700115973

SPACER

3шт.

25

6827794

SPACER

1шт.

26

700132479

ANGLE

1шт.

27

700135953

INDICATOR

1шт.
