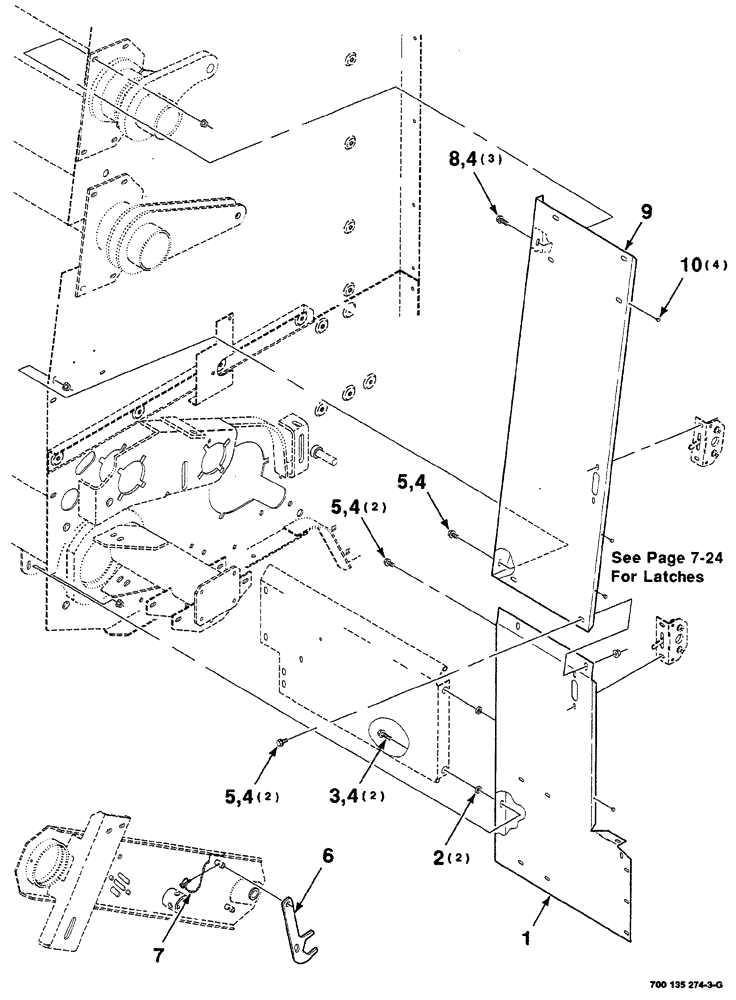

Запчасти Case IH RS561A (7-016) - LATCH SUPPORT ASSEMBLIES, LEFT (12) - MAIN FRAME

1

700135610

SHIELD

lower, L.H.

1шт.

2

700150182

SPACER

2шт.

3

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8"-16 x 1-1/4", hex. flange , GR8

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

10шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

6

700132794

OPEN END WRENCH

1шт.

7

863415

PIN

klik

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

9

700153715

SHIELD

upper L.H., includes: Decals

1шт.

10

700715104

BUMPER

4шт.
