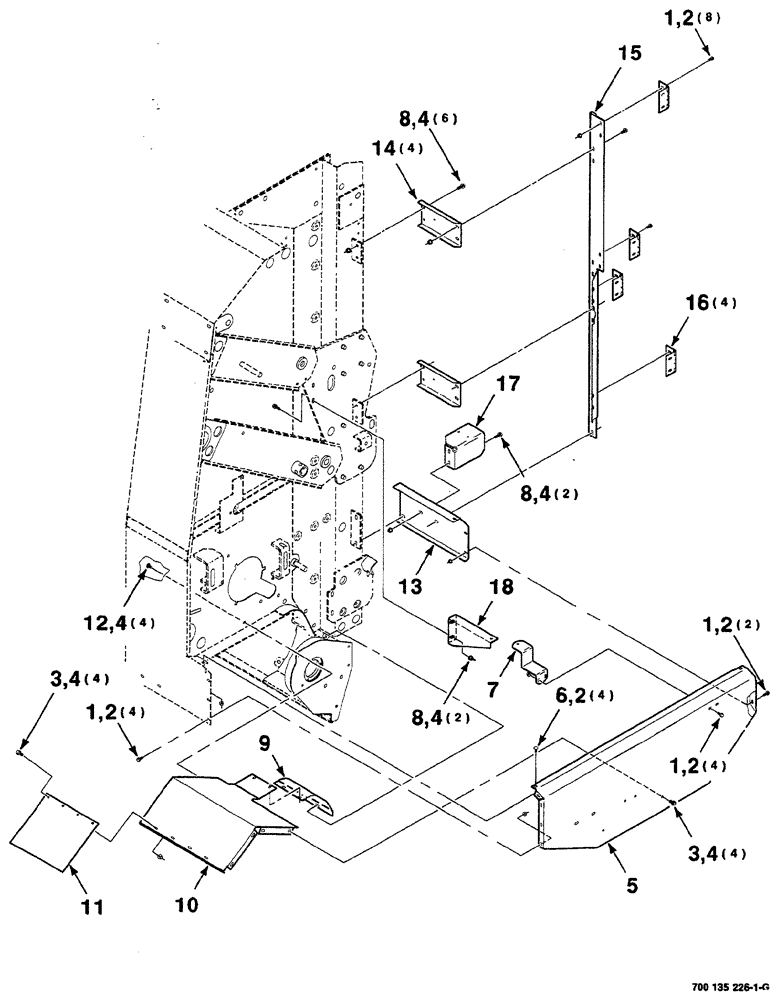

Запчасти Case IH RS561A (7-012) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT (12) - MAIN FRAME

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

18шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

22шт.

5

700135635

SHIELD

L.H.

1шт.

6

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

7

700135634

SUPPORT

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

10шт.

9

700150883

SHIELD

lower, L.H.

1шт.

10

700150824

SHIELD

L.H.

1шт.

11

700718401

SHIELD

rubber

1шт.

12

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

13

700135629

SUPPORT

L.H.

1шт.

14

700135628

SUPPORT

4шт.

15

700135626

SUPPORT

L.H.

1шт.

16

700707701

HINGE

butt

4шт.

17

700132505

SUPPORT

valve, mount

1шт.

18

700132896

SUPPORT

L.H.

1шт.
