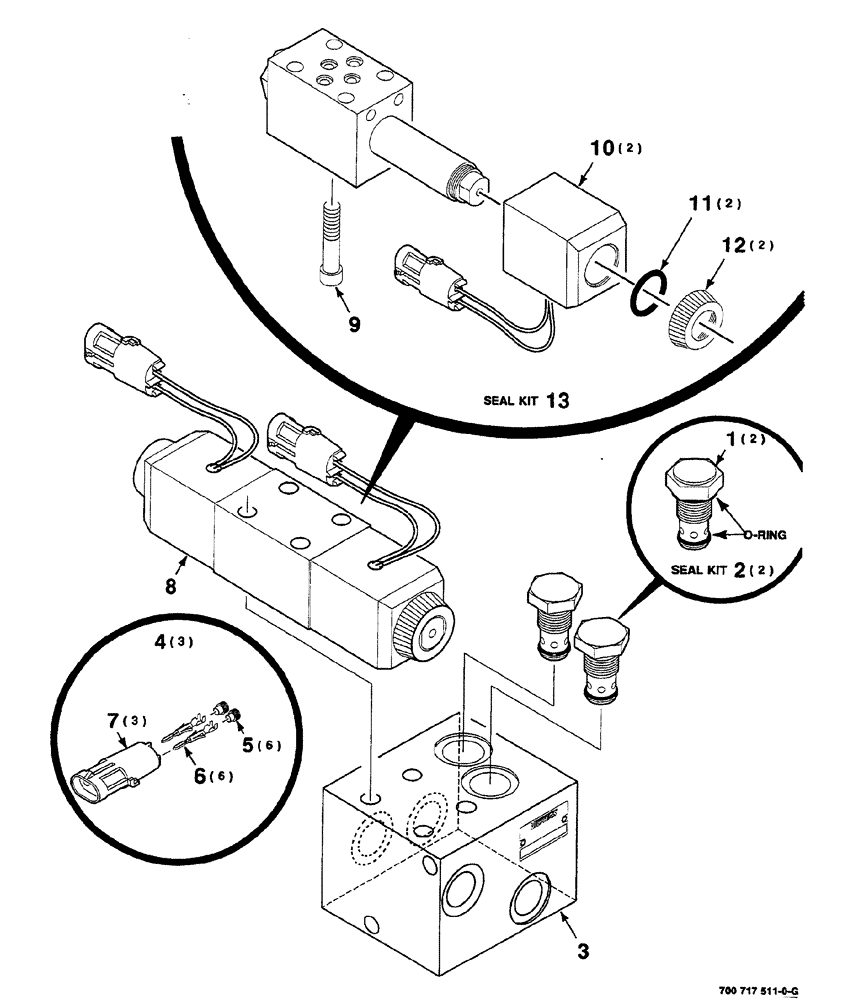

Запчасти Case IH RS561A (8-042) - HYDRAULIC CONTROL VALVE ASSEMBLY, MESH WRAP, 700717511 COMPLETE (07) - HYDRAULICS

700717511

MANIFOLD VALVE

ASSY., hydraulic, control

1шт.

1

700717726

VALVE

piloted check

2шт.

2

700718409

KIT

seal

2шт.

3

700717722

MANIFOLD VALVE

1шт.

4

700708753

REPAIR KIT

harness repair, includes: REF. 5, 6 & 7

3шт.

5

700706400

PLUG

6шт.

6

700706401

TERMINAL

PIN

6шт.

7

700706399

ELEC CONNECTOR,14 - 20 SAE

2-way shroud

3шт.

8

700717723

VALVE

directional

1шт.

9

700714189

KIT

bolt

1шт.

10

700715392

SOLENOID

2шт.

11

700718870

O-RING

2шт.

12

700718869

NUT

plastic

2шт.

13

700717725

SEAL KIT

KIT

1шт.
