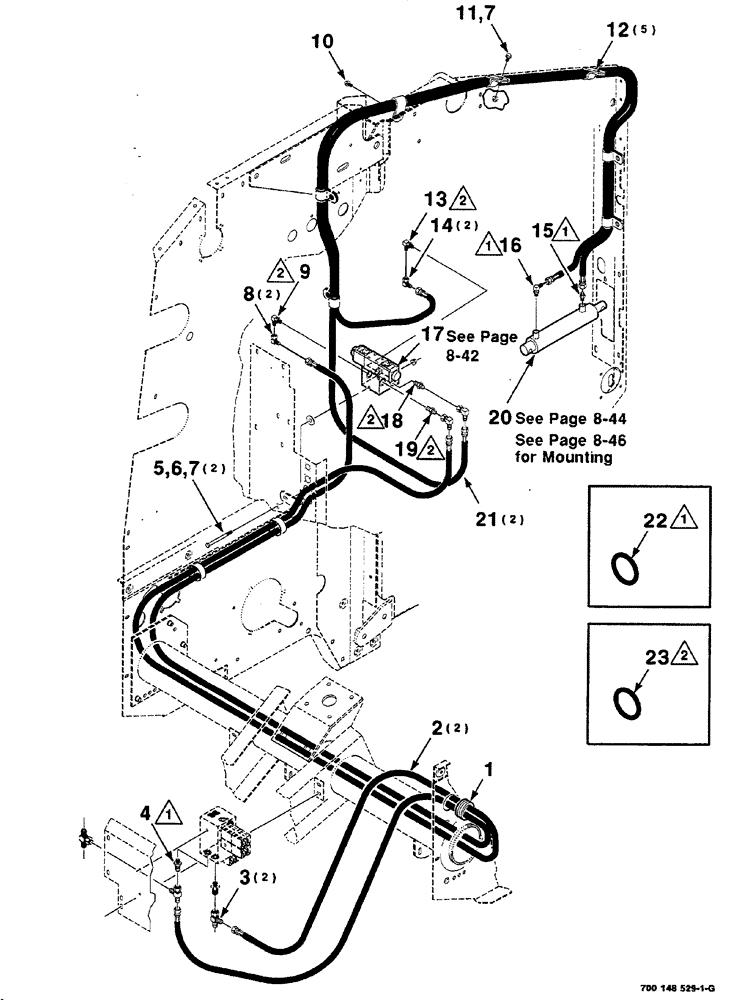

Запчасти Case IH RS561A (8-040) - HYDRAULIC ASSEMBLY, MESH WRAP (07) - HYDRAULICS

1

8027427

GROMMET

1шт.

2

700719123

HYDRAULIC HOSE,0.38" ID x 157.48"

hydrtaulic

2шт.

3

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

3/4", 37° taper, straight thread, MFM

2шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

straight, 9/16" ORBM x 3/4" JICM, includes: REF. 22

1шт.

5

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8"-16 x 4-1/2", hex. cap screw

2шт.

6

495-21056

WASHER,1/2"

wide, plain 1/2"

2шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

3шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

JICM x JICF

2шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref 23

1шт.

10

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8"-16 x 3/4", hex. washer head thread cutting tapping

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

12

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1.25

5шт.

13

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 23

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

JICM, JICF

2шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 22

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16" JICM x ORBM, Includes: Ref. 22

1шт.

17

700717511

MANIFOLD VALVE

ASSY. hydraulic

1шт.

18

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

straight, 3/4" ORBM x 9/16" JICM, includes: REF. 23

1шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight, ORBM, JICM, Incl. Ref 23

1шт.

20

700712122

CYLINDER

ASSY. hydraulic

1шт.

21

700719124

HYDRAULIC HOSE,0.38" ID x 181.10", SAE 100R2, SAE J517

hydraulic

2шт.

22

738468

O-RING

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
