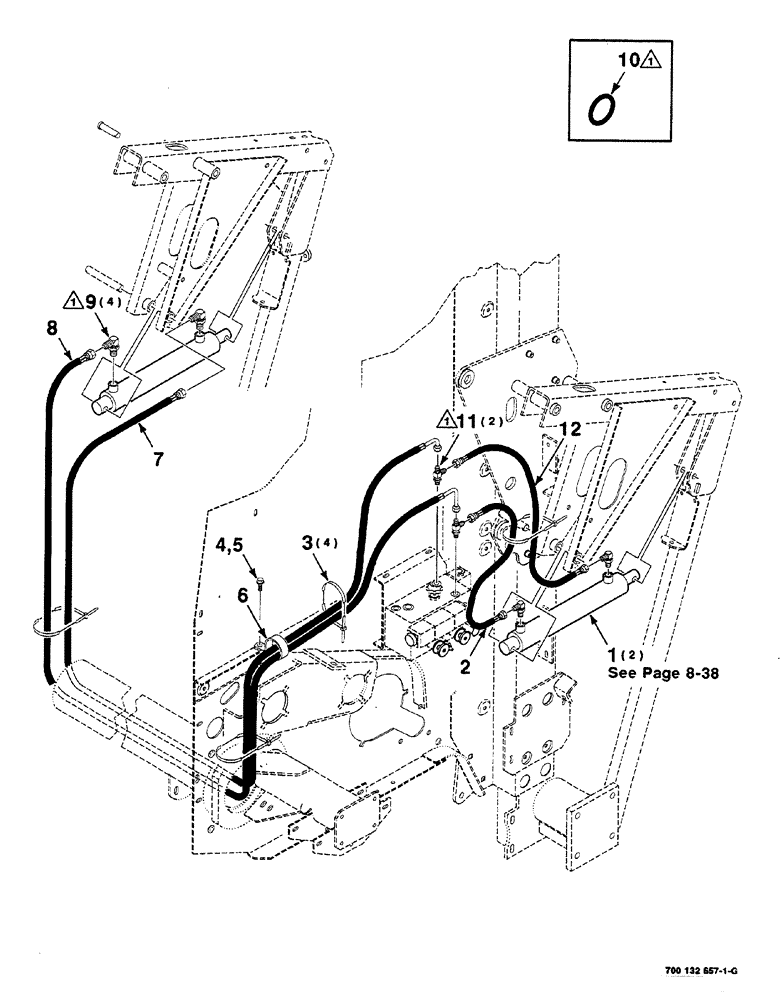

Запчасти Case IH RS561A (8-036) - KICKER HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

700714707

CYLINDER

ASSY. hydraulic

2шт.

2

700714806

HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343

hydraulic

1шт.

3

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

4шт.

4

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

1шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8"-16, hex. flange top lock, GR/G

1шт.

6

7041015

CLAMP

line

1шт.

7

700719098

HOSE

hydraulic

1шт.

8

700719097

HOSE

hydraulic

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 10

4шт.

10

738468

O-RING

9/16"

1шт.

11

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 10

2шт.

12

700719103

HYDRAULIC HOSE,0.25" ID x 23.62"

hydraulic

1шт.
