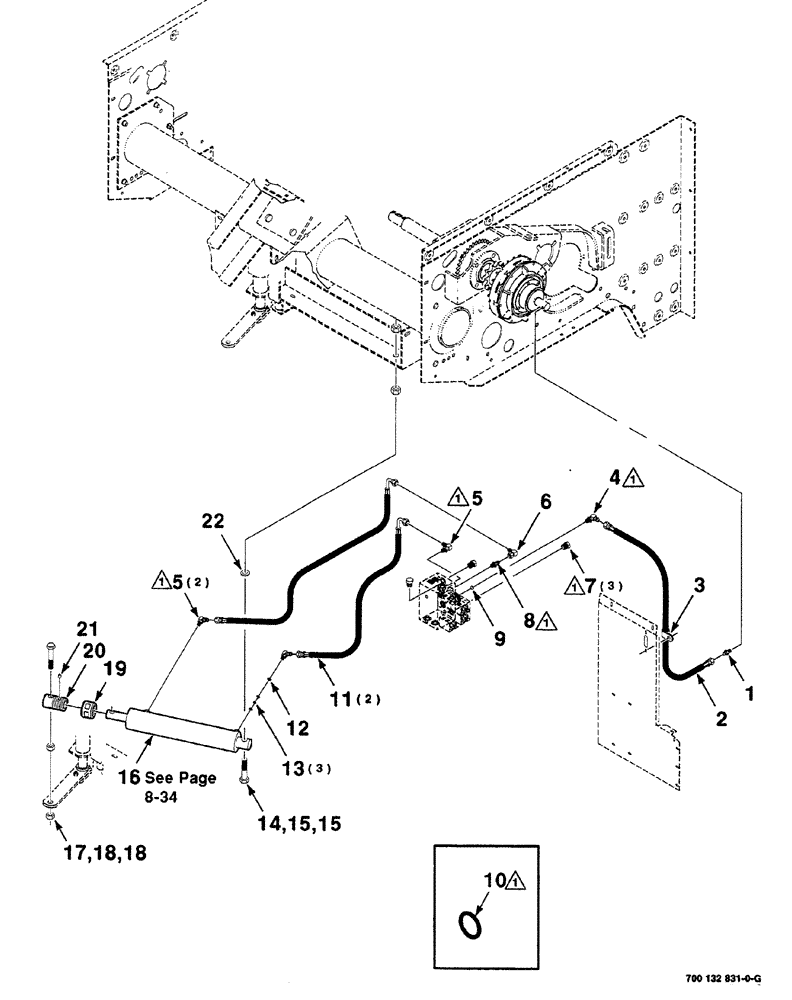

Запчасти Case IH RS561A (8-032) - HYDRAULIC ASSEMBLY, THREADER (07) - HYDRAULICS

1

86513589

HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT

straight

1шт.

2

700719510

HYDRAULIC HOSE,0.25" ID x 19.21"

hydraulic

1шт.

3

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

4

700701834

ELBOW

90°, includes: REF. 10

1шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 10

3шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

7

7746456

PLUG

includes: REF. 10

3шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

1шт.

9

700719464

ORIFICE

9/16"-18, plate, .026

1шт.

10

738468

O-RING

1шт.

11

700719107

HOSE

hydraulic

2шт.

12

674516R1

PORT

ORIFICE plate, .062

1шт.

13

495-21019

WASHER,#8

3шт.

14

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4"-10 x 3-1/4", hex.

1шт.

15

425-1012

NUT,3/4"-10, G5

2шт.

16

700719879

CYLINDER

ASSY. hydraulic

1шт.

17

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

18

425-1010

NUT,5/8"-11, G5

2шт.

19

700135930

NUT

cylinder stop

1шт.

20

700135809

STOP

cylinder

1шт.

21

700716646

STOP

1шт.

22

95-81051

WASHER,19.84mm ID x 31.75mm OD x 3.81mm Thk

3/4" x 10, gauge, narrow rim machinery bushing

1шт.
