(8-024) - HYDRAULIC CYLINDER ASM., TAILGATE, WITHOUT MESH WRAP, 700716066 COMPLETE

Запчасти Case IH RS561A (8-024) - HYDRAULIC CYLINDER ASM.,TAILGATE, WITHOUT MESH WRAP, 700716066 COMPLETE (07) - HYDRAULICS

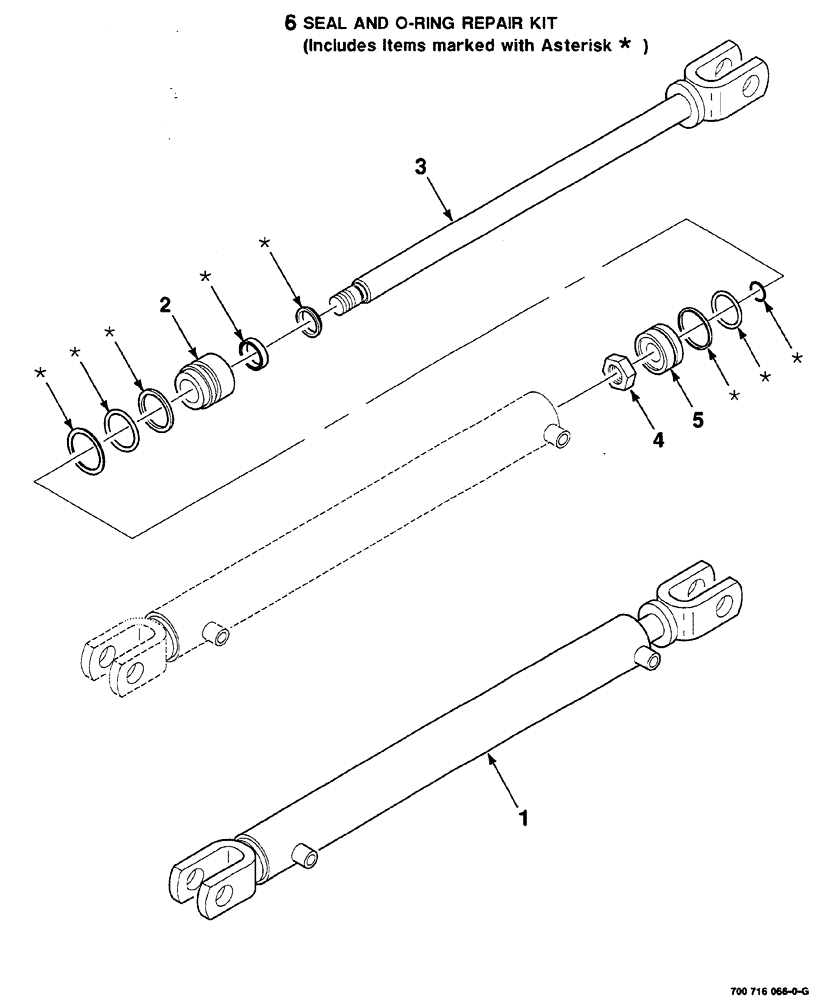

Схема запчастей Case IH RS561A - (8-024) - HYDRAULIC CYLINDER ASM., TAILGATE, WITHOUT MESH WRAP, 700716066 COMPLETE (07) - HYDRAULICS
2
*
4
1
6
*
5
*
*
3
*
*
*
*
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700716066

CYLINDER

ASSY. hydraulic, complete, 2 in. bore x 24 in. stroke

1шт.

2

700712477

GUIDE

rod

1шт.

3

700718145

ROD

piston

1шт.

4

700707418

JAM NUT

7/8"-14, UNF, hex jam

1шт.

5

700707419

PISTON

1шт.

6

700718144

KIT

seal and o-ring repair, Includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
